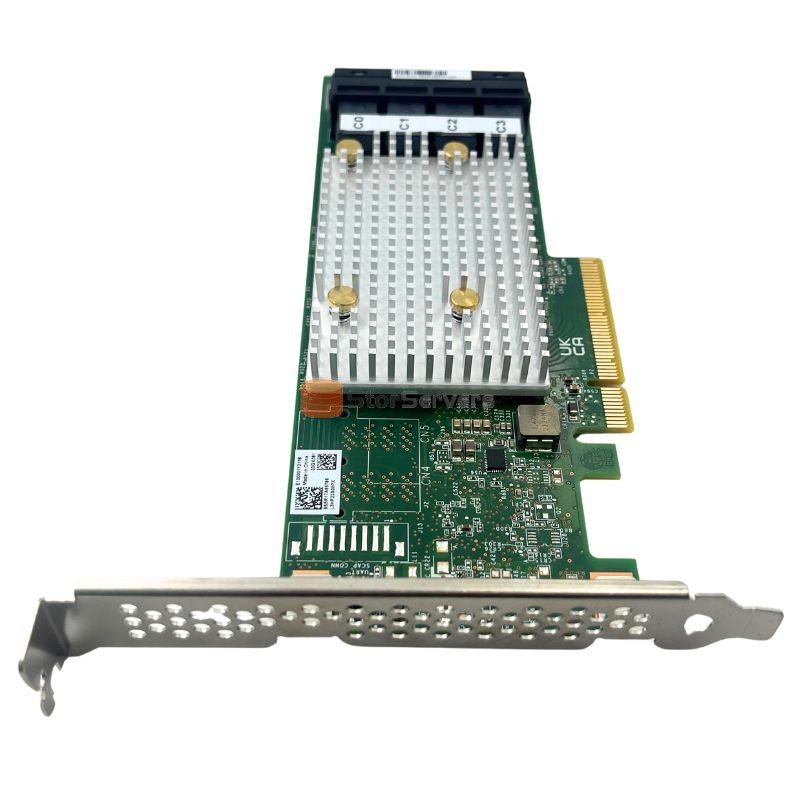

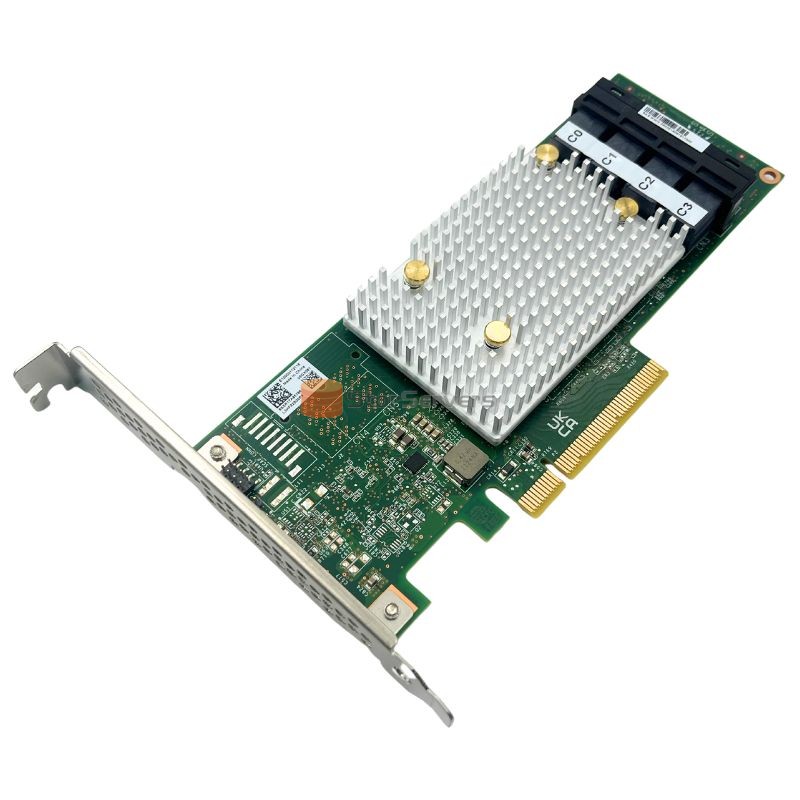

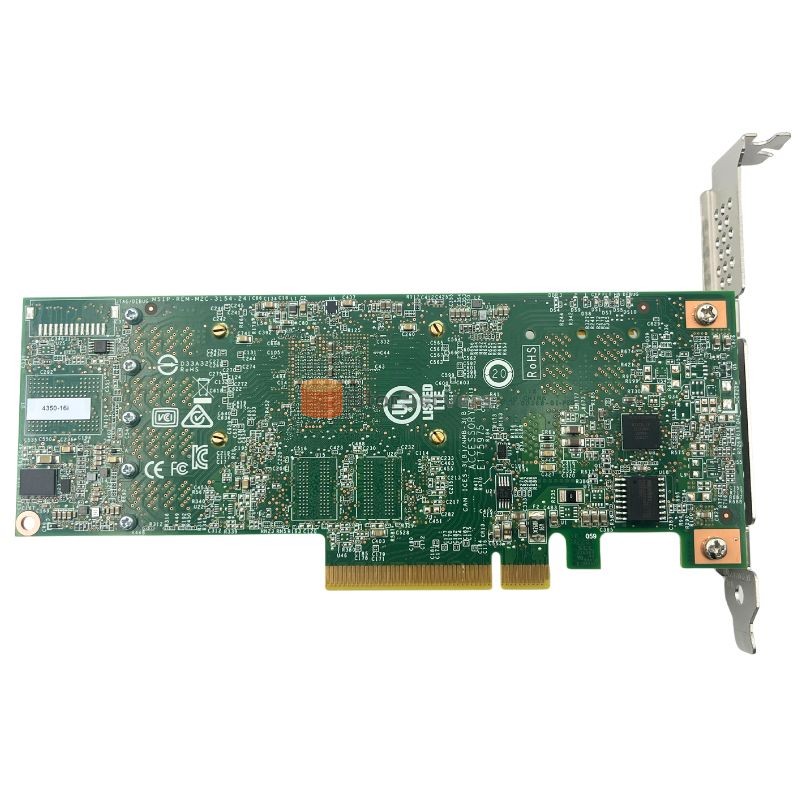

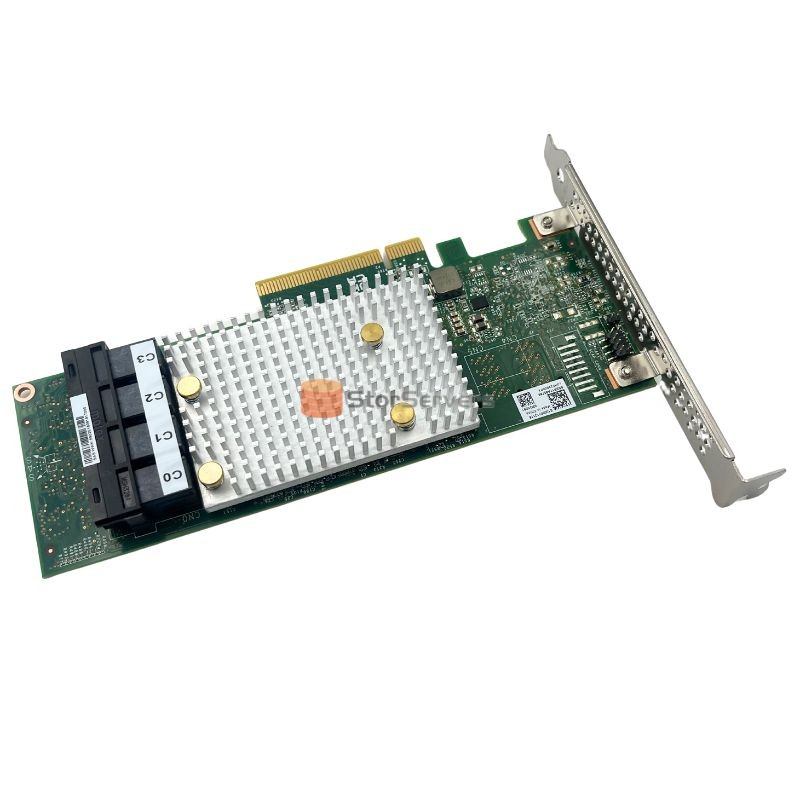

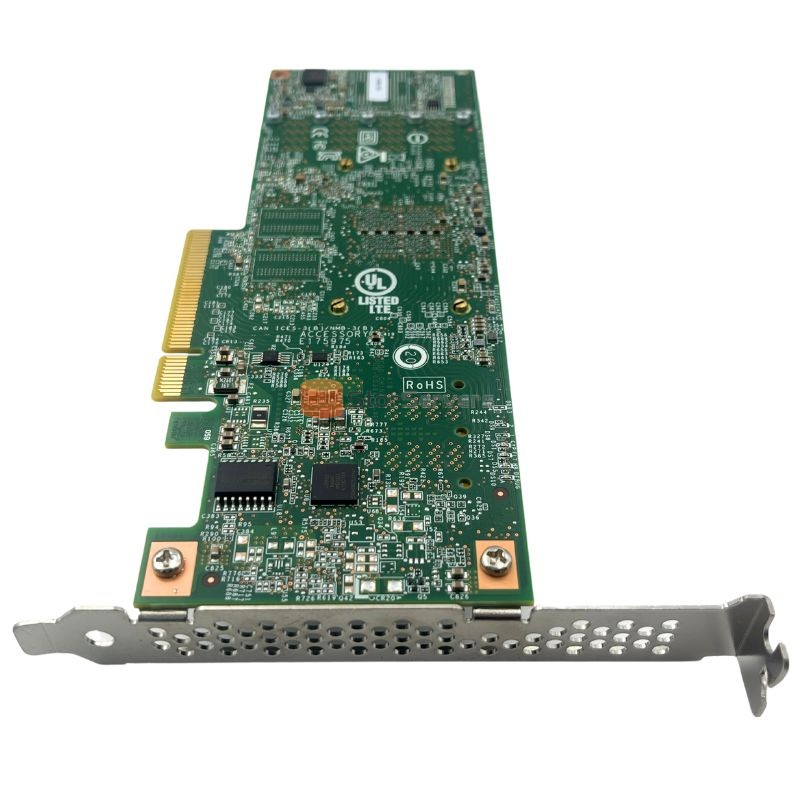

4350-16i SAS/SATA 12Gb HBA PCIe 3.0 x8
Applications
The 4350 SAS/SATA HBA Series delivers enterprise resiliency with its broadly deployed Smart Storage stack. Based on the Adaptec PM8222 8x12G SmartIOC 2100 SAS/SATA protocol controller, the 4350 HBAs provide a robust and stable solution that can handle the toughest system workloads and configurations. The adapters offers over 40% power savings compared to previous generations, and significant power advantages versus competing solutions.
Key Features
- PCIe 3.0 x8 host interface
- 12 Gbps SAS/SATA host bus adapter, based on the Adaptec HBA 1100-8i and 1100-16i
- PCI low profile, half-length form factor
- 8 or 16 internal 12 Gbps SAS/SATA ports
- 4350-8i support connectivity to 8 internal drives
- 4350-16i support connectivity to 16 internal drives
- Up to 12 Gbps throughput per port
- Supports 12, 6, or 3 Gbps SAS speeds
- Supports 6 or 3 Gbps SATA speeds
- Two internal x4 HD Mini-SAS connectors (SFF-8643)
- Non-RAID (JBOD mode, known as “raw” or "HBA mode” in Adaptec parlance) support for SAS and SATA HDDs and SSDs (RAID not supported)
- Optimized for SSD performance
- High performance architecture with a queue depth of up to 1014
- Advanced power management support
Specification
| Model |
4350-16i |
| Form factor |
PCIe low profile |
| Adaptec equivalent |
Adaptec HBA 1100-16i |
| Host Connector |
PCIe 3.0 x8 |
| Port interface |
12 Gb SAS |
| Number of ports |
16 |
Port connectors
|
4x Mini-SAS HD x4 (SFF-8643) |
Drive interface
|
SAS, SATA |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
