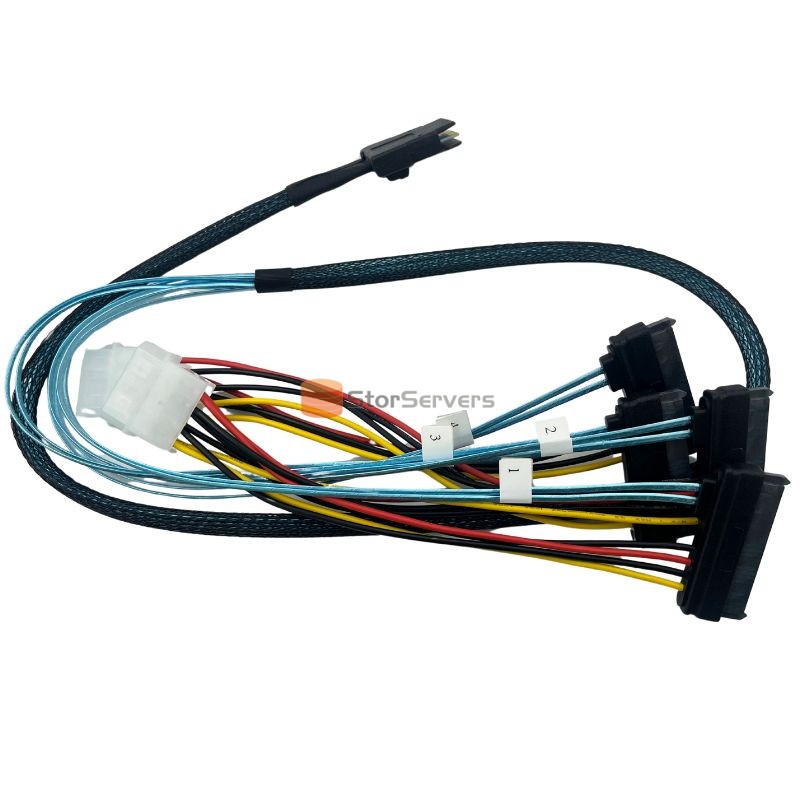

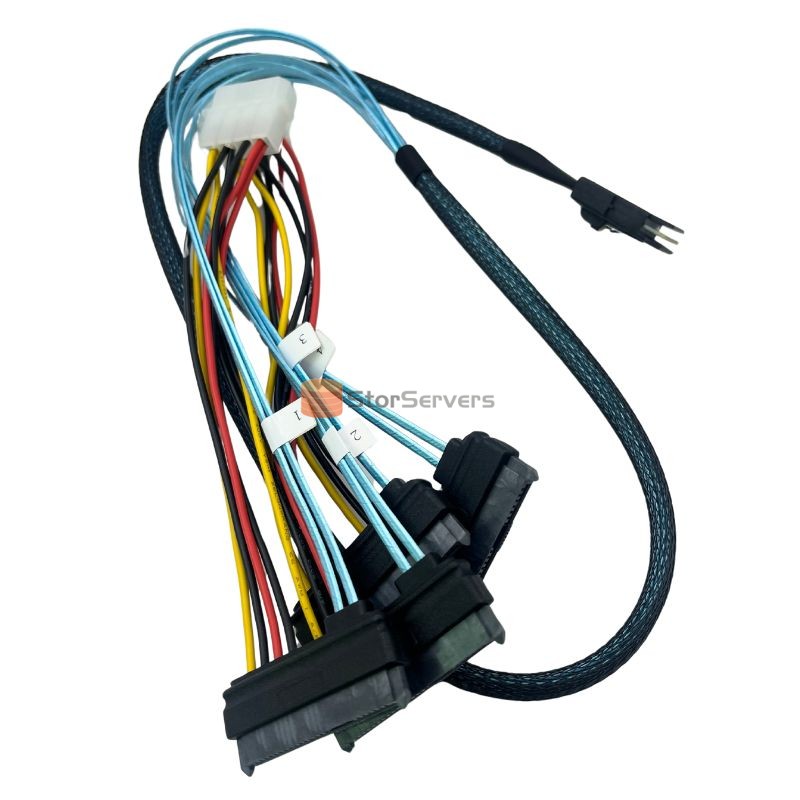

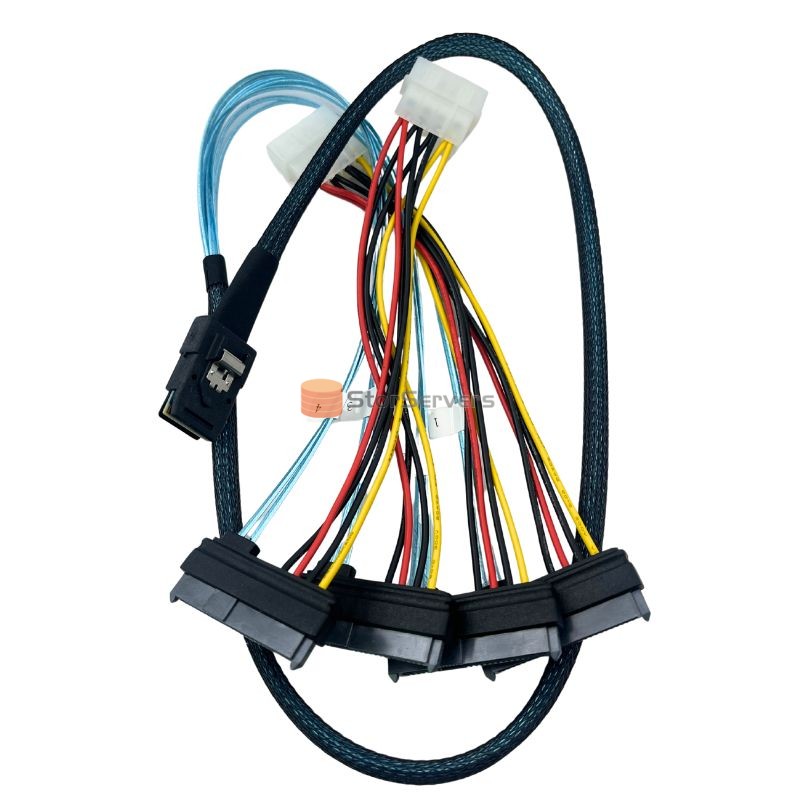

Data cable SFF 8087 to SFF 8482
Applications
1、 Interface definition: Host side (A): SFF-8087 (Mini SAS 4i), 36 pins, male head. Device end (B): 4 x SFF-8482 (SAS 29 pin), male, with 15 pin SATA power supply per channel. 2、 Speed and bandwidth: Single channel speed: 6Gbps (SAS 2.0/SATA 3.0) Total bandwidth: 4 × 6Gbps=24Gbps. Protocol compatibility: SAS 2.1, SATA 3.0; SAS 3.0 (12Gbps) is not supported. 3. Electrical and Physical: Wire gauge: 28/30 AWG oxygen free copper, aluminum foil shielding. Impedance: 100 Ω differential, compliant with SAS specifications. Length: Standard 0.5m/1m, customizable. Color: Red/Black is common; RoHS compliance. Appearance: Integrated splitter, compatible with half length card/1U chassis. 4、 Function and purpose: Connection: 1 SFF-8087 → 4 SAS/SATA hard drives (2.5/3.5 inches). Power supply: Each SFF-8482 is integrated with a 15 pin SATA power supply, without the need for additional power cords. Scenario: Internal expansion of servers, RAID arrays, HBA cards. Hot swappable: support (requires system/controller cooperation).
Key Features
- 1/4 internal SAS data cable

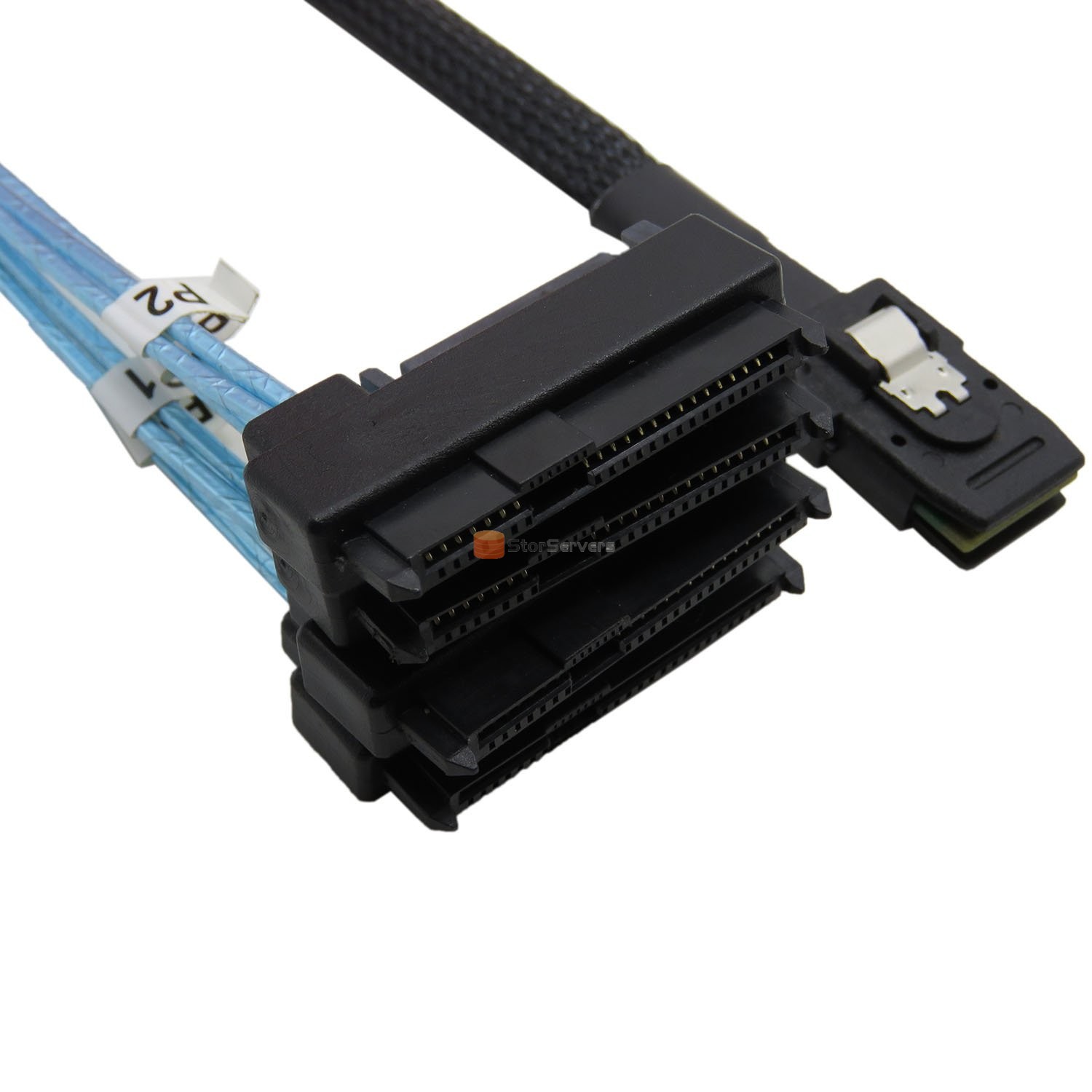

- Host end (A): SFF-8087 (Mini SAS 4i), 36 pin, male head

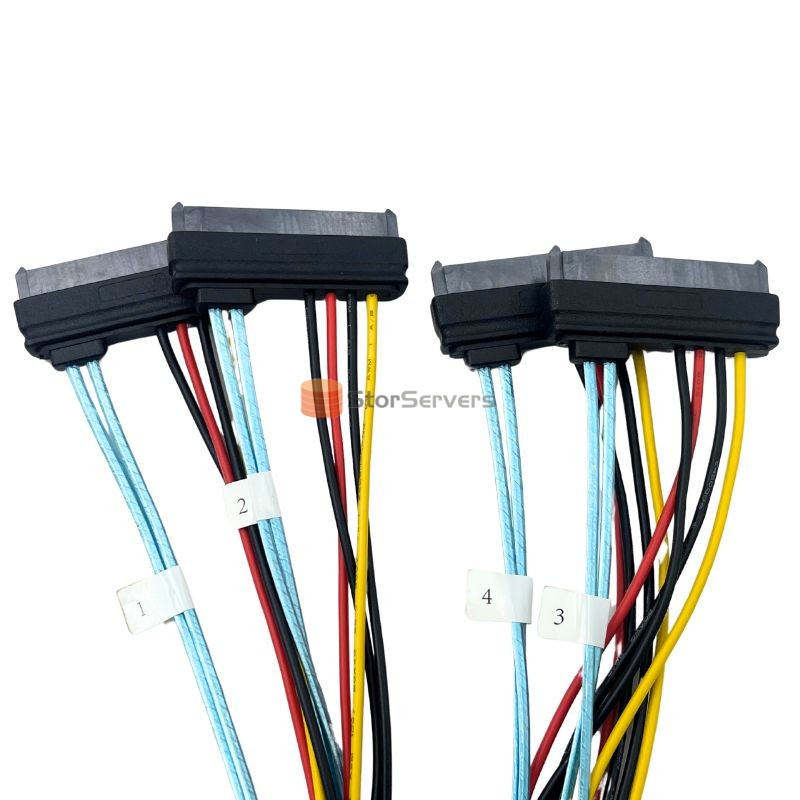

- Device end (B): 4 x SFF-8482 (SAS 29 pin), male, each with 15 pin SATA power supply
- Single channel speed: 6Gbps (SAS 2.0/SATA 3.0)
- Total bandwidth: 4 × 6Gbps=24Gbps
- Protocol compatibility: SAS 2.1, SATA 3.0; Not supporting SAS 3.0 (12Gbps)
Specification
| Model |
SFF 8087 to SFF 8482 |
| Host end (A): |
SFF-8087 (Mini SAS 4i), 36 pin, male head |
| Device end (B): |
4 x SFF-8482 (SAS 29 pin), male, each with 15 pin SATA power supply |
| length |
0.5m/1m
|
| Controller |
Lack |
| Systems Interface Type |
1/4 internal SAS data cable |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
