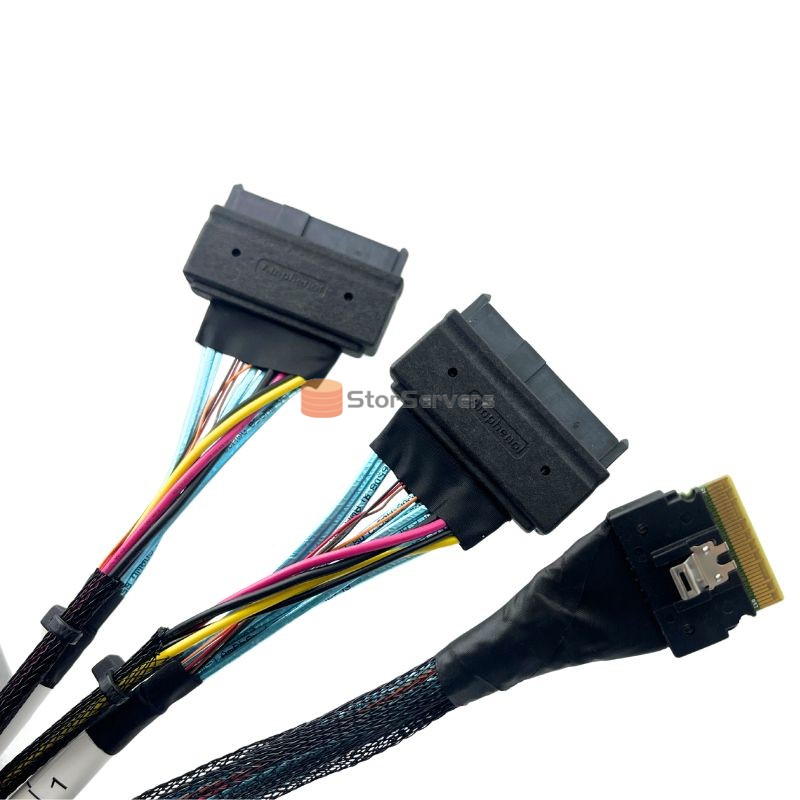

NVMe Data cable SFF 8654 8x to SFF 8639x2
Applications
Main specifications: Host end: 1 × SFF-8654 8x (74pin, LP approximately 6.5mm high). Device end: 2 × SFF-8639 (U.2, 68pin). Power supply: 1 x SATA 15 pin or 4-pin power male connector (providing power to 2 U.2). Protocol: PCIe 4.0/5.0, NVMe 1.4/2.0 (does not support SAS → SATA). Channel allocation: 8x → 2 × 4x (each U.2 runs PCIe 4x). Single channel speed: PCIe 4.0:16GT/s. PCIe 5.0：32GT/s。 Each U.2 bandwidth: PCIe 4x=64Gbps (PCIe4)/128Gbps (PCIe5). Total bandwidth: 128Gbps (PCIe4)/256Gbps (PCIe5) Wire gauge: Signal: 30AWG oxygen free copper, gold plating ≥ 30 μ ". Power supply: 20-22AWG. Shielding: Single pair shielding+total weaving+aluminum foil, resistant to EMI/RFI. Length: 0.5m/0.55/0.75/1.0m (passive maximum length of 1m). Power supply capacity: 12V, maximum 9A per port, meets the power supply of U.2 NVMe SSD. Certification: RoHS, REACH, UL94 V-0.
Key Features
- 1 SlimSAS 8x (PCIe/SAS) port, divided into 2 channels of U.2 (SFF-8639) NVMe

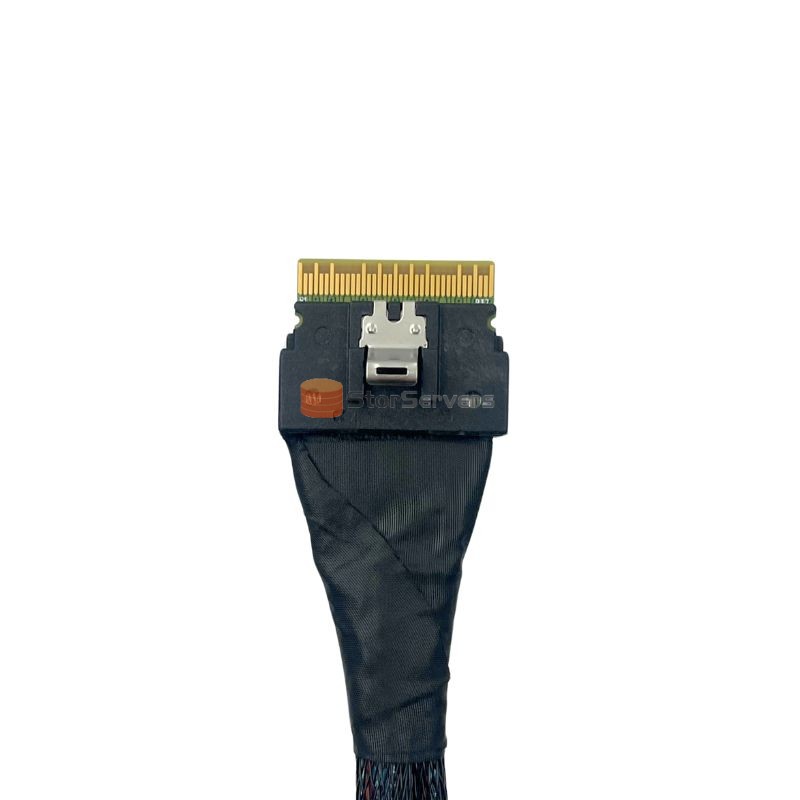

- Host end: 1 × SFF-8654 8x (74pin, LP approximately 6.5mm high)

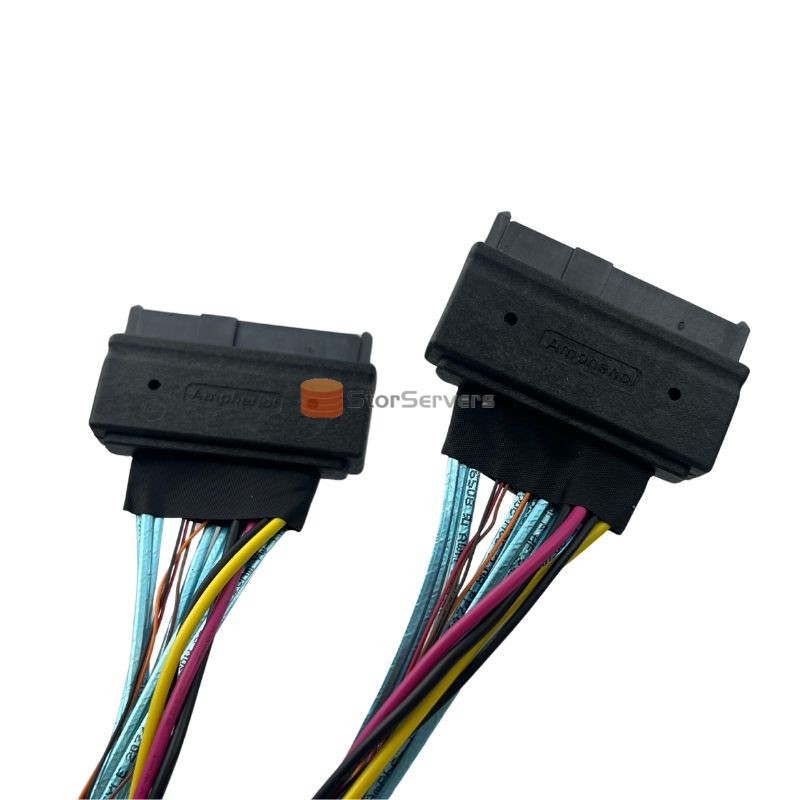

- Device end: 2 × SFF-8639 (U.2, 68pin)

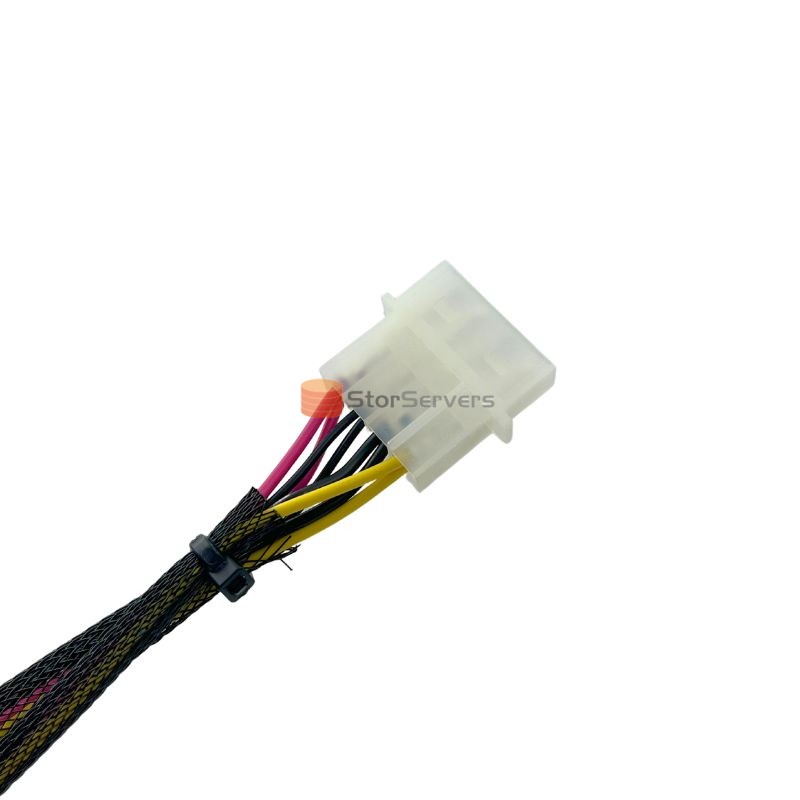

- Power supply: 1 x SATA 15 pin or 4-pin power male connector (for 2 U.2 power supplies)
- Protocol: PCIe 4.0/5.0, NVMe 1.4/2.0 (does not support SAS → SATA)
- Channel allocation: 8x → 2 × 4x (each U.2 runs PCIe 4x)
Specification
| Model |
SFF 8654 8x to SFF 8639x2 |
| Host end: |
1 × SFF-8654 8x (74pin, LP approximately 6.5mm high) |
| Device end: |
2 × SFF-8639 (U.2, 68pin) |
| length |
0.5m/0.55m/0.75m/1m
|
| Controller |
Lack |
| Systems Interface Type |
1 SlimSAS 8x (PCIe/SAS) port, divided into 2 channels of U.2 (SFF-8639) NVMe |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
