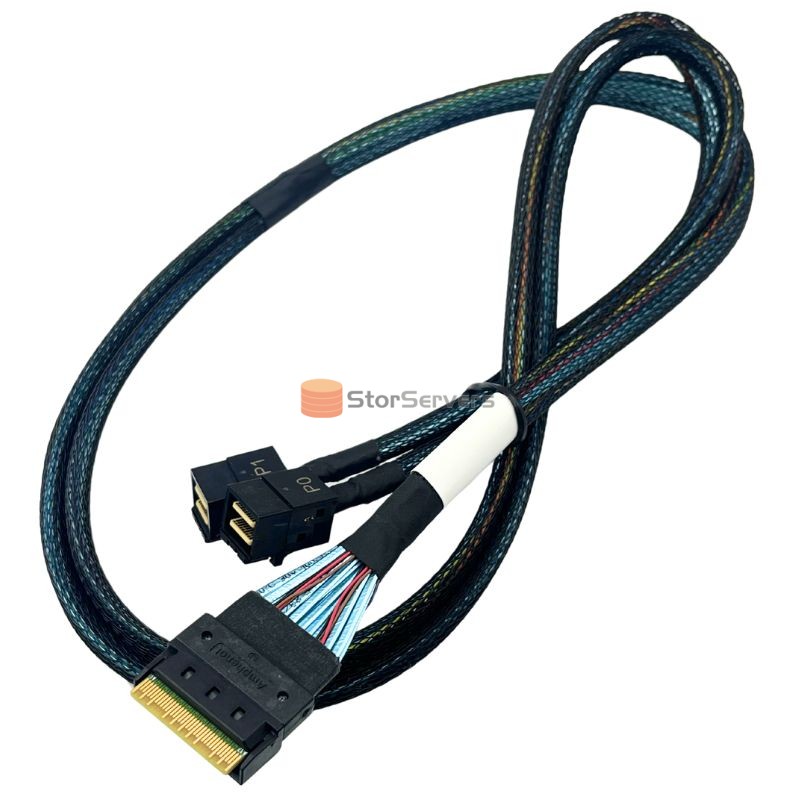

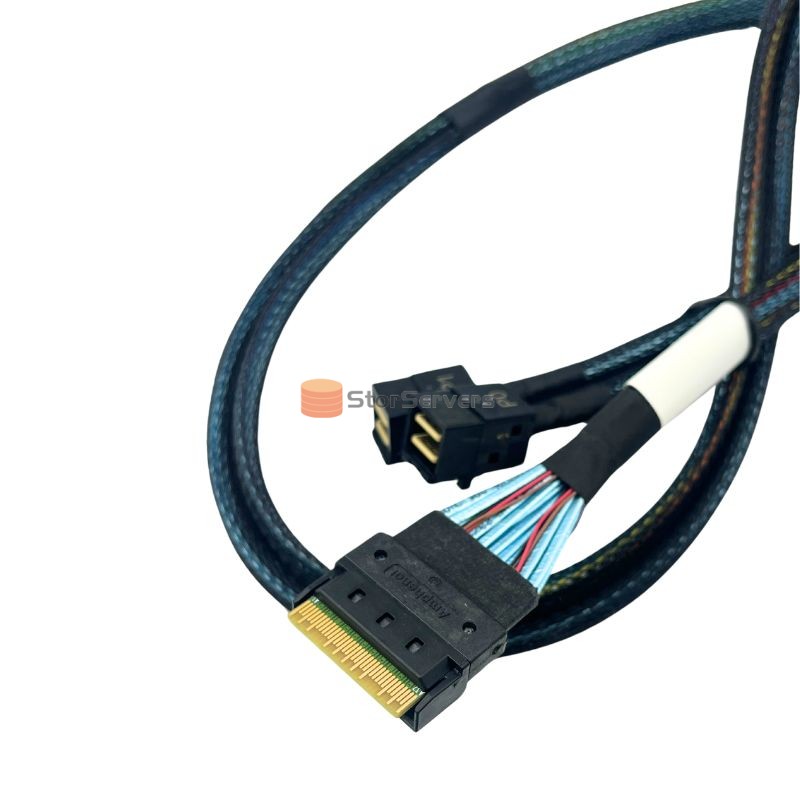

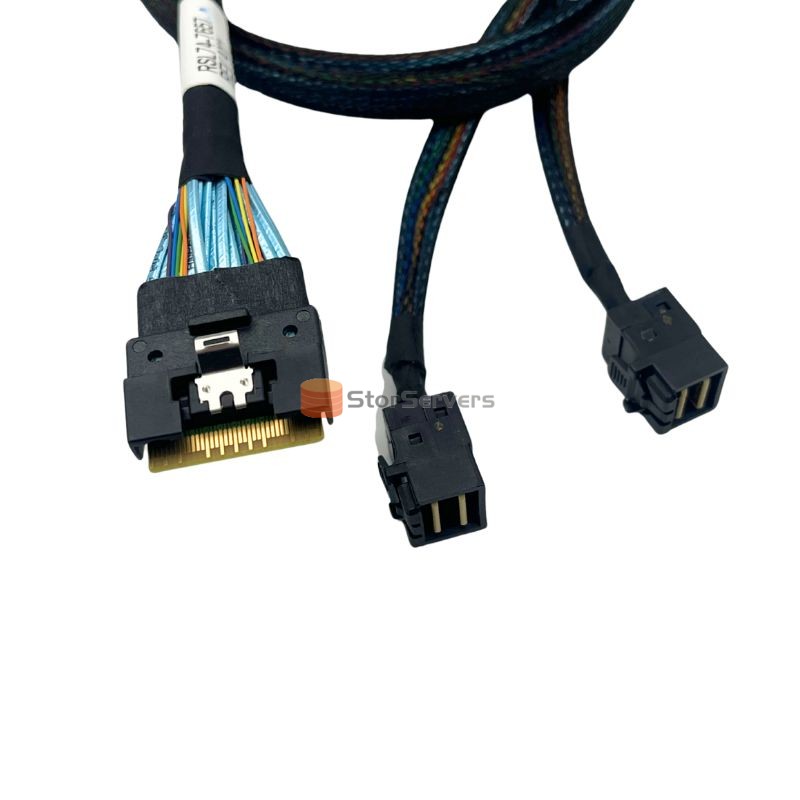

Data cable SFF 8654 8x to SFF 8643x2
Applications
1. Connector and channel: Host end: SFF-8654 (SlimSAS) 8x/74pin. Device side: 2 x SFF-8643 (MiniSAS HD) 4x/36pin. Channel allocation: 8x → 4x+4x (two independent 4i links). Usage: 1 8i port can be expanded to 2 4i ports, and up to 8 SAS/SATA/NVMe hard drives can be connected. 2. Rate and protocol (the third mock examination): SAS: 12 Gbps per lane (SAS 4.0). PCIe/NVMe: 8 GT/s per lane (PCIe 4.0). SATA: 6 Gbps compatible. Total bandwidth: 8 × 12 Gbps=96 Gbps (SAS); 8 × 8 GT/s=64 GT/s (PCIe).
Key Features
- 1 SlimSAS 8i to 2 Mini-SAS HD 4i
- Host end: 1× SFF‑8654 8i（74pin，SlimSAS）
- Device end: 2× SFF‑8643 4i（36pin，Mini‑SAS HD）
- Channel Allocation: 8 Channels → 2×4 Channels (Lossless Splitting)
- SAS: 12 Gbps per lane (SAS 4.0)
- Total bandwidth: 8 × 12 Gbps=96 Gbps (SAS); 8×8 GT/s = 64 GT/s（PCIe）
Specification
| Model |
SFF 8654 8x to SFF 8643x2 |
| Host end : |
1× SFF‑8654 8i（74pin，SlimSAS） |
| Device end : |
2× SFF‑8643 4i（36pin，Mini‑SAS HD） |
| length |
0.5m/0.8m/1m
|
| Controller |
Lack |
| Systems Interface Type |
1 SlimSAS 8i to 2 Mini-SAS HD 4i |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
