BCM957414A4142CC Dual-Port 25 Gb/s SFP28 Ethernet
Applications

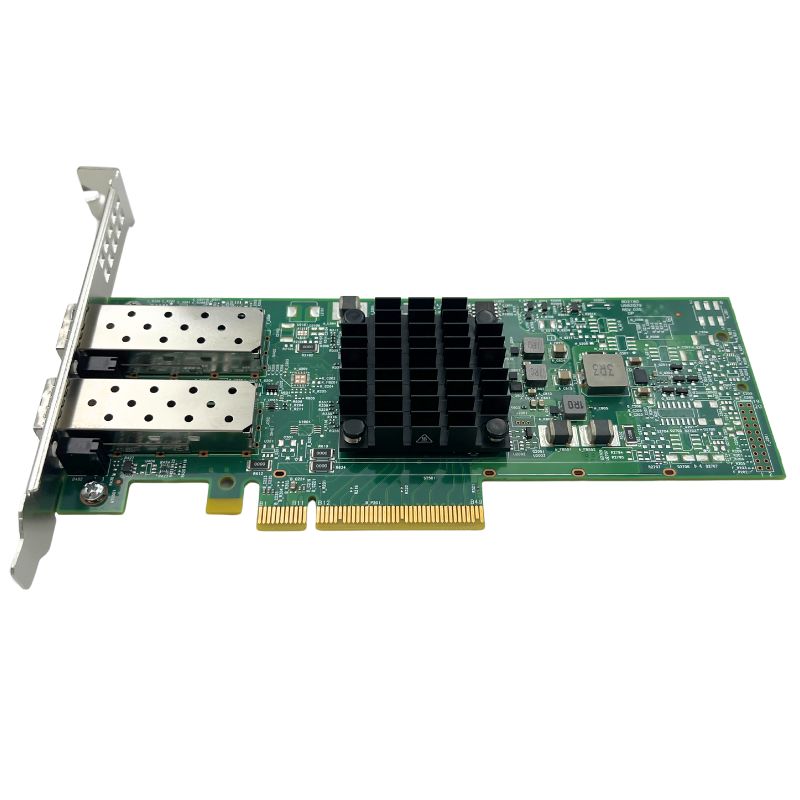

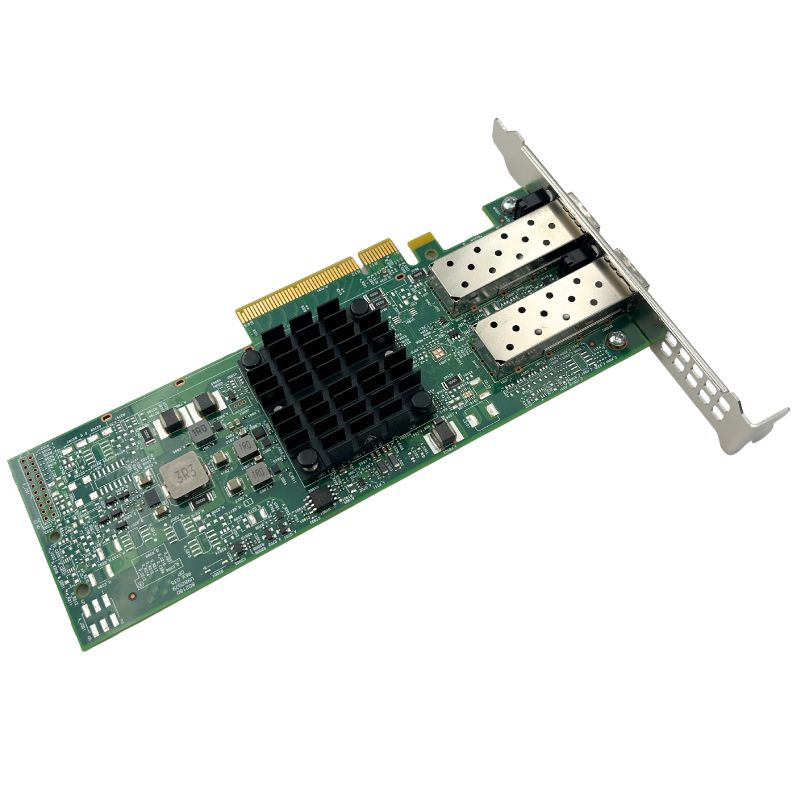

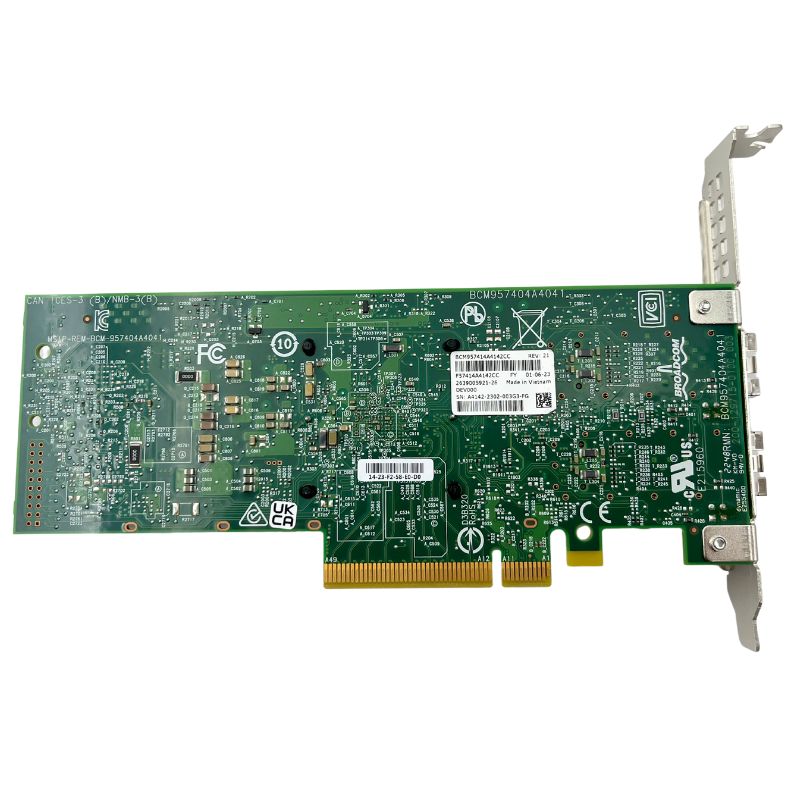

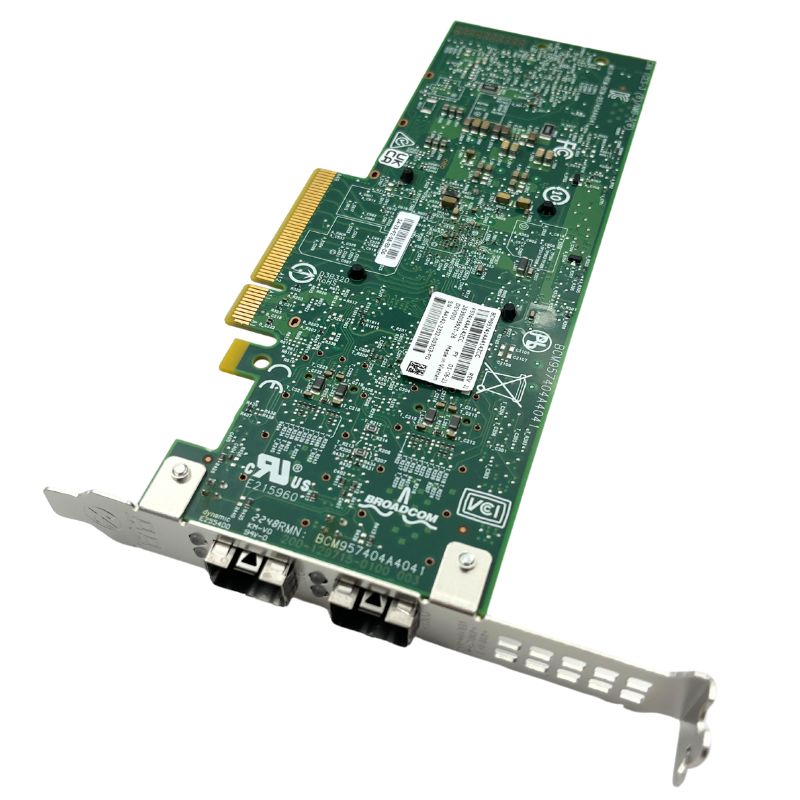

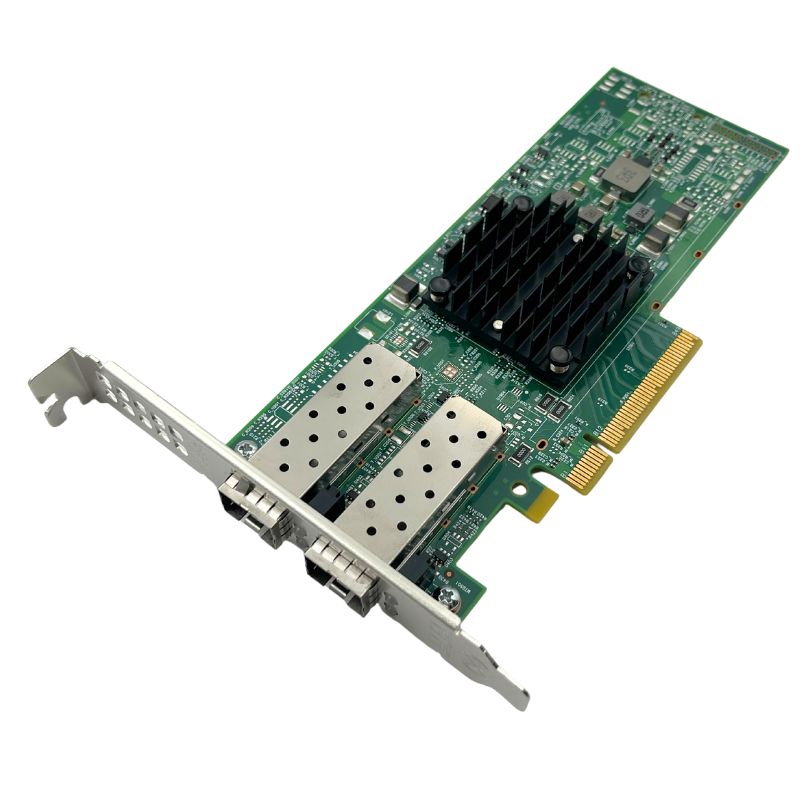

The BCM957414A4142CC is a dual-port 25 Gb/s or 10 Gb/s PCI-Express 3.0 x8 Network Interface Card that supports both SFP28/SFP+ optical modules and copper direct-attach cables. It incorporates the BCM57414 25GbE MAC controller, which features an integrated dual-channel 25GbE SFI transceiver. The card is equipped with advanced technologies such as RoCE, SDN, and NFV to ensure efficient network management.
Built on scalable 10/25/50/100/200G Ethernet controller architecture, the Series BCM57414 50G PCIe 3.0 Ethernet controller is engineered to deliver highly scalable and feature-rich networking solutions for servers. It is designed to meet the demands of enterprise and cloud-scale networking and storage applications, including high-performance computing, telecommunications, machine learning, storage disaggregation, and data analytics.
Key Features
- The dual-port pluggable media interface supports connections to either a 25G SFP28 or 10G SFP+ optical transceiver, as well as copper direct-attach cables.
- It is fully compliant with the SFF-8402 standard and adheres to the x8 PCI Express v3.0 specification.
- The interface features SR-IOV with support for up to 128 virtual functions (VFs) and includes Function-Level Reset (FLR) capability.
- It enables virtual network termination for protocols such as VXLAN, NVGRE, Geneve, and GRE encapsulation/decapsulation, along with vSwitch acceleration.
- Additionally, it provides tunnel-aware stateless offloads and supports Data Center Bridging (DCB) features, including PFC, ETS, QCN, and DCBX.
- The interface also supports RDMA over Converged Ethernet (RoCE), SMBus 2.0, and MCTP over SMBus.
Specification
| Model |
BCM957414A4142CC |
| Ports |
Dual |
| Data Rate Per Port |
PCIe 3.0 x 8 |
| Connector Type |
SFP28 |
| Bracket Height |
Full Height and Low Profile |
| ASIC |
BCM57414 |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
