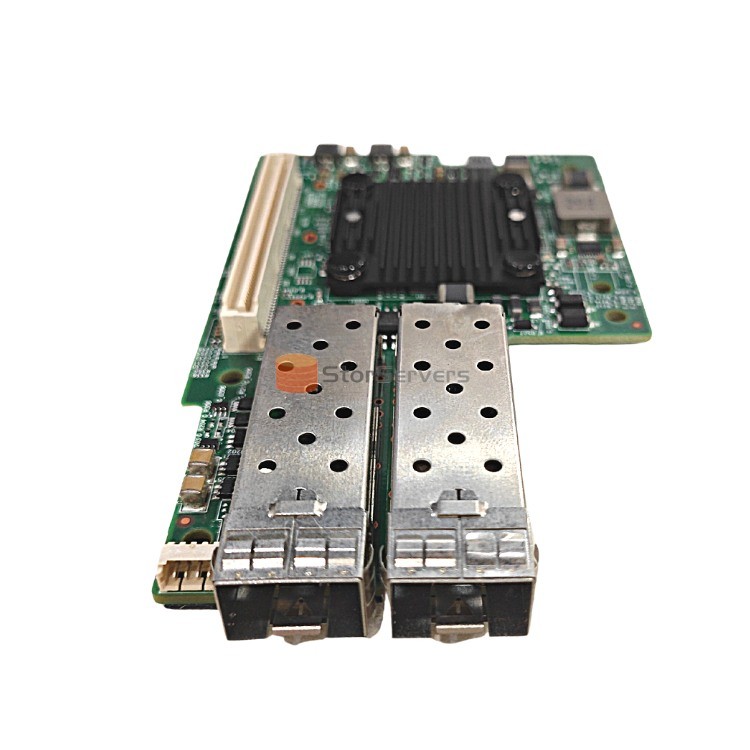

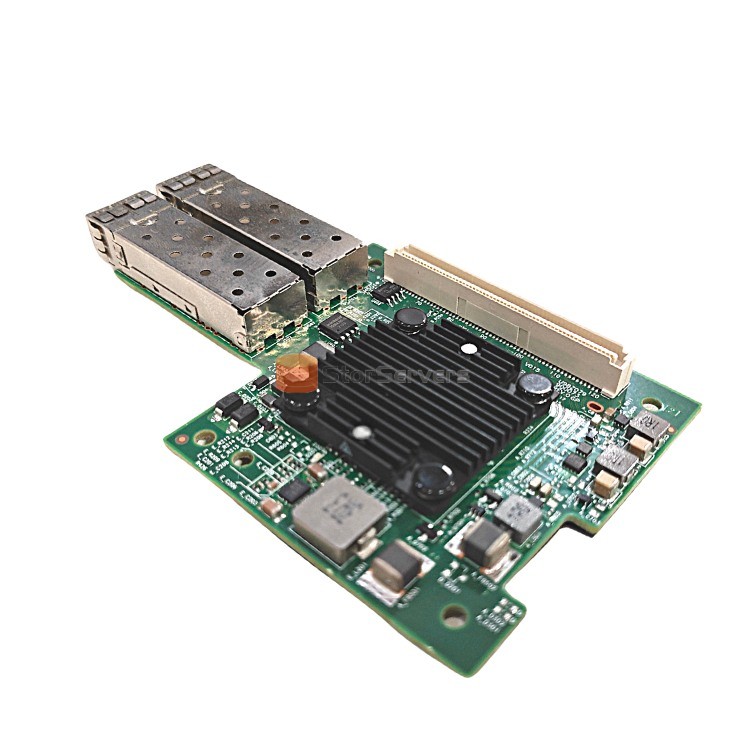

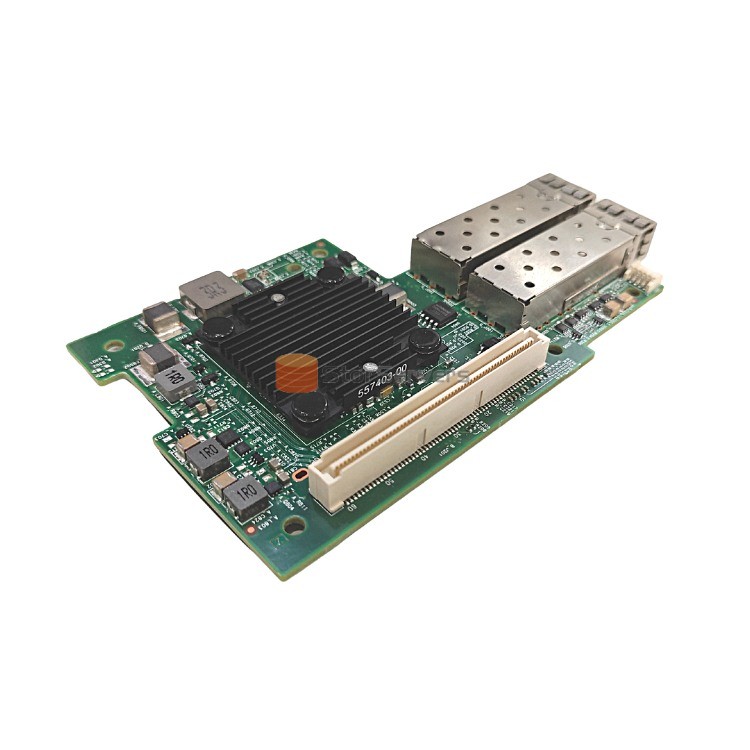

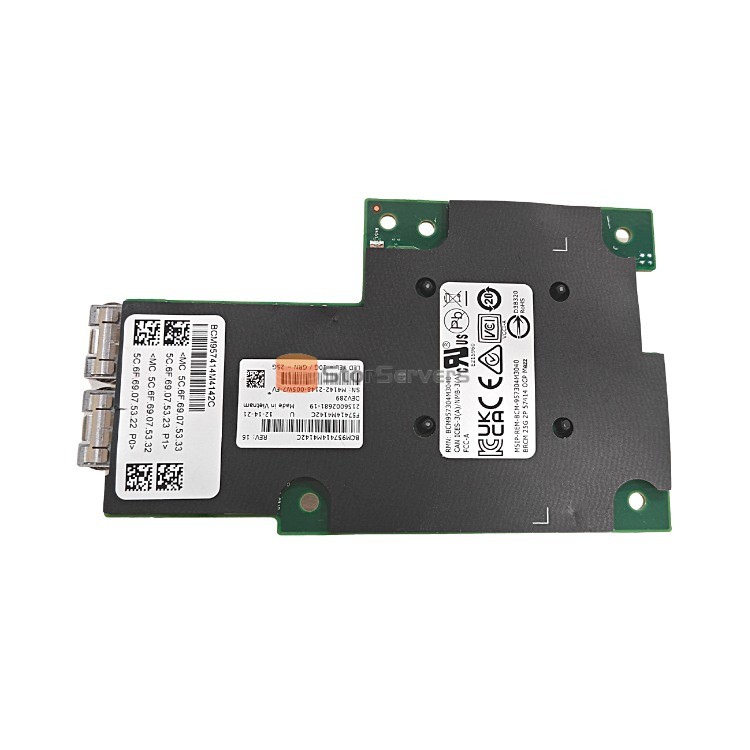

Original BCM957414M4142C OCP 2.0 Mezzanine Card Dual-Port 25Gb/s SFP28 Ethernet PCI Express

Original BCM957414M4142C OCP 2.0 Mezzanine Card Dual-Port 25Gb/s SFP28 Ethernet PCI Express

Dual-Port 25-Gigabit Ethernet adapter for Open Compute Platform systems.

Model	BCM957414M4142C
Port	Dual-Port
Data Transfer Rates	25 Gb/s
Warranty	3 Years

Package Type :
Carton
Single package size :
/
Single gross weight :
75 grams
Min. order :
1 Piece
Shipping :
Contact supplier to negotiate shipping details
Payments :
Western Union、L/C、T/T、MoneyGram、D/A、D/P
Returns & Refunds :
Returns & refunds accept

Inquire Now

Product Details

BCM957414M4142C OCP 2.0 Mezzanine Card

General Description

The BCM957414M4142C is a dual-port 25 Gb/s PCI Express 3.0 x8 Mezzanine Card designed to the Open Compute Project (OCP) Mezzanine Card 2.0 Design Specification with an SFP28 network as a Type 1 adapter, with the board outline adhering to a form factor called out in v0.5 of the specification. The adapter supports SFP28/ SFP+ optical modules and copper direct-attach cables. The card uses the Broadcom BCM57414 25GbE MAC controller with an integrated dual-channel 25 GbE SFI transceiver.

Features

• Dual-port pluggable media interface, which may be equipped with 25G SFP28, 10G SFP+ optical transceiver or with a copper direct-attach cable.

• Fully compliant with the SFF-8402 standard.

• x8 PCI Express 3.0 compliant.

• SR-IOV with up to 128 virtual functions (VFs).

• Function-Level Reset (FLR) support.

• TruFlow™ flow processing engine.

• Virtual Network Termination—VXLAN, NVGRE, Geneve, GRE encap/decap.

• vSwitch acceleration.

• Tunnel-aware stateless offloads.

• DCB support – PFC, ETS, QCN, DCBx.

• RDMA over Converged Ethernet (RoCE)

• Network Controller Sideband Interface (NCSI).

• SMBus 2.0.

• MCTP over SMBus.

• PCIe-based UART and KCS.

• Jumbo frames up to 9 Kb.

• Advanced Congestion Avoidance.

• Multiqueue, NetQueue, and VMQ.

• IPv4 and IPv6 offloads.

• TCP, UDP, and IP checksum offloads.

Specification

Model	BCM957414M4142C
Ports	Dual-Port
Port Configuration	2× 25GbE, 2× 10GbE
Product Description	Dual-Port 25 Gb/s or 10 Gb/s Ethernet PCI Express 3.0 ×8 OCP Mezzanine Card; RoHS-compliant
Power	10.9W Typical with Passive DAC at 55°C ambient temperature
Dimensions (in.)	OCP 2.0 Form Factor
Weight	75 grams

Lead time

Quantity (pieces)	1-10	10-60	>60
Lead time (days)	3	3-5	To be negotiated
