• High-port count SAS/SATA/NVMe controllers for direct-attached highconnectivity applications
• Tri-Mode connectivity enabling maximum data center flexibility
• Flexible solutions for cloud computing
• External storage requiring highconnectivity SAS/SATA interface for host or drive side connect
Key Features
• Tri-Mode storage interface ports
− SFF-8680 bay
− x1 SAS
− x1 SATA
− x2 SAS (multi-link)
− Two x1 SAS (dual port using MPIO)
− SFF-8639 (U.2) bay
− x2, x4 NVMe
• Supports 12, 6, and 3 Gb/s SAS and 6 and 3 Gb/s SATA data transfer rates
• Up to 8 storage interface PCIe links. Each link supports x4 or x2* link widths up to 8.0 GT/s (PCIe 3.0) per lane
• SFF-9402 compliant, connector pin-out
• SFF-8485 compliant, SGPIO
• RAID levels 0, 1, 5,10, 50
• CacheVault™ flash back-up at power fail
− Supports bad block management
• PCIe 3.1 host interface
− Supports x8, x4, x2, and x1 PCIe lanes at a transfer rate up to 8.0 GT/s per lane, full duplex
− Lane and polarity reversal − Variable PCIe bandwidth negotiation
Specification
Model

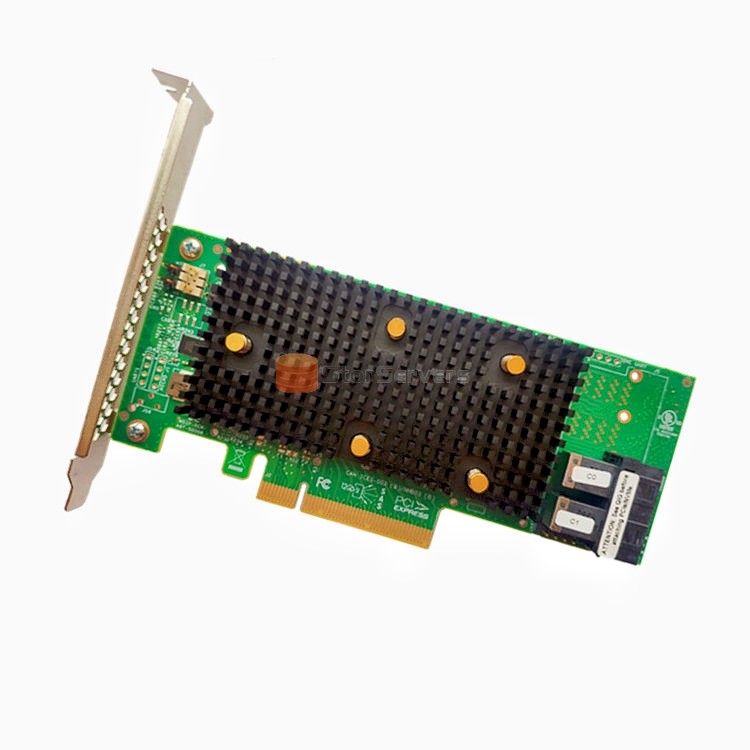

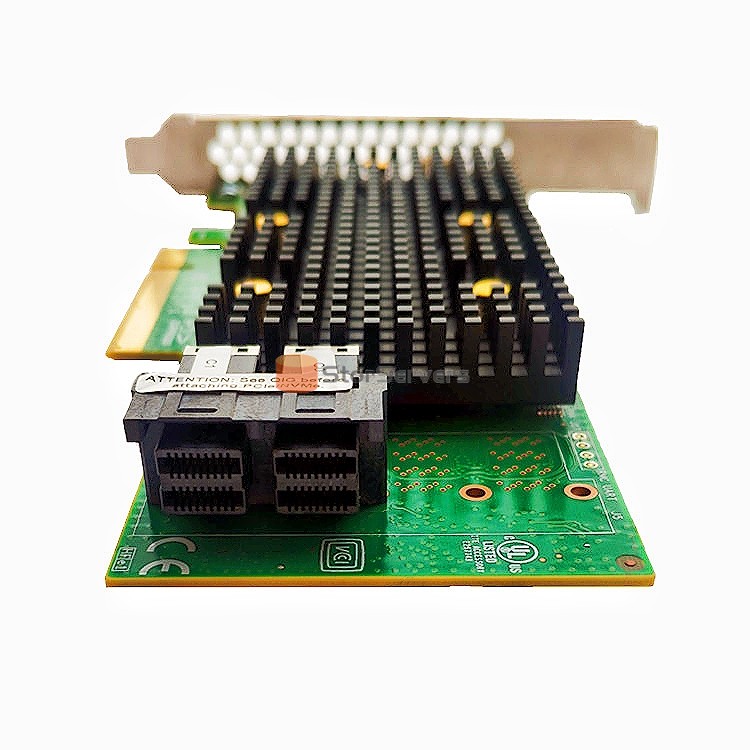

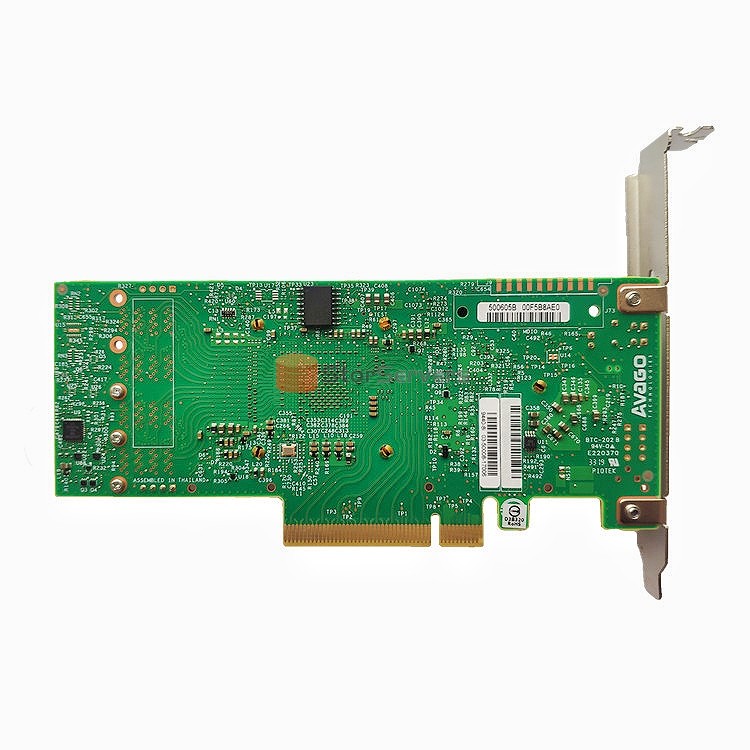

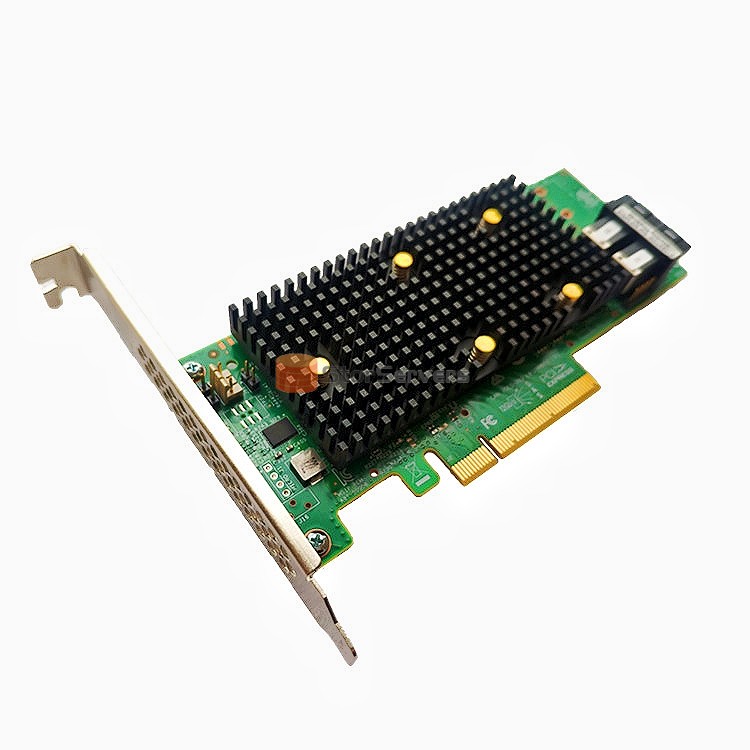

LSI 9440-8i
Ports
8 internal
PN
05-50008-02
Connectors
Two(×4)SFF-8643
Storage Interface Support
SAS,SATA,NVMe(PCle)
Max NVMe Direct Attach Devices
Two x4, Two x2
Max Devices Per Controller
SAS/SATA: 63 NVMe: 2
I/O Processor/ SAS Controller
SAS3408
Host Bus Type
PCle 3.1 x8
Key RAID Data Protection Features
RAID 0, 1, 5,10, 50
Typical Power
10.05W
Physical Dimensions
6.127 in.x 2.712 in(155.65 mm x68.90 mm)
Availability
In Stock
