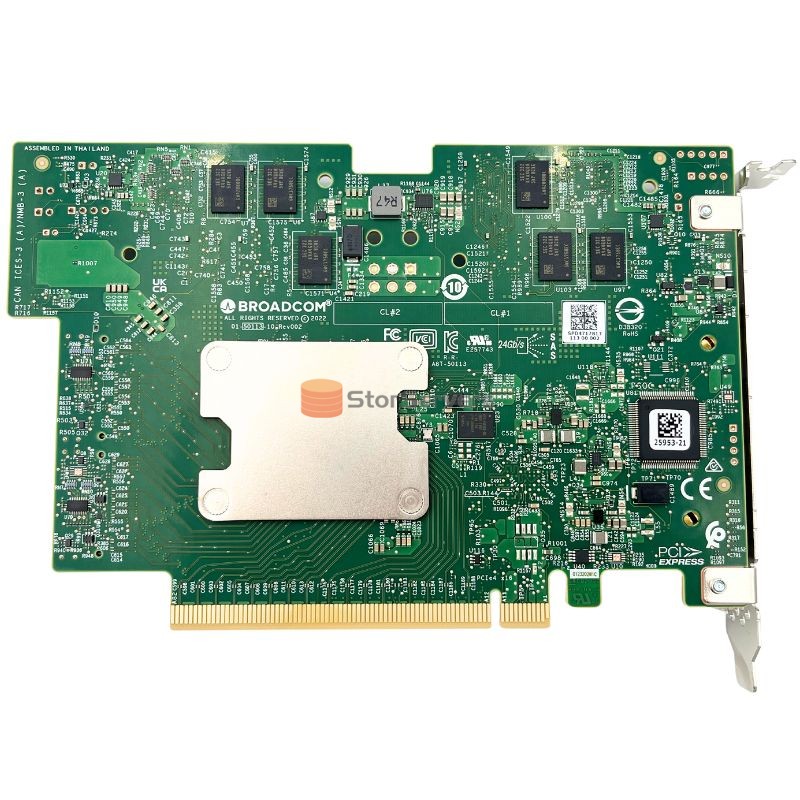

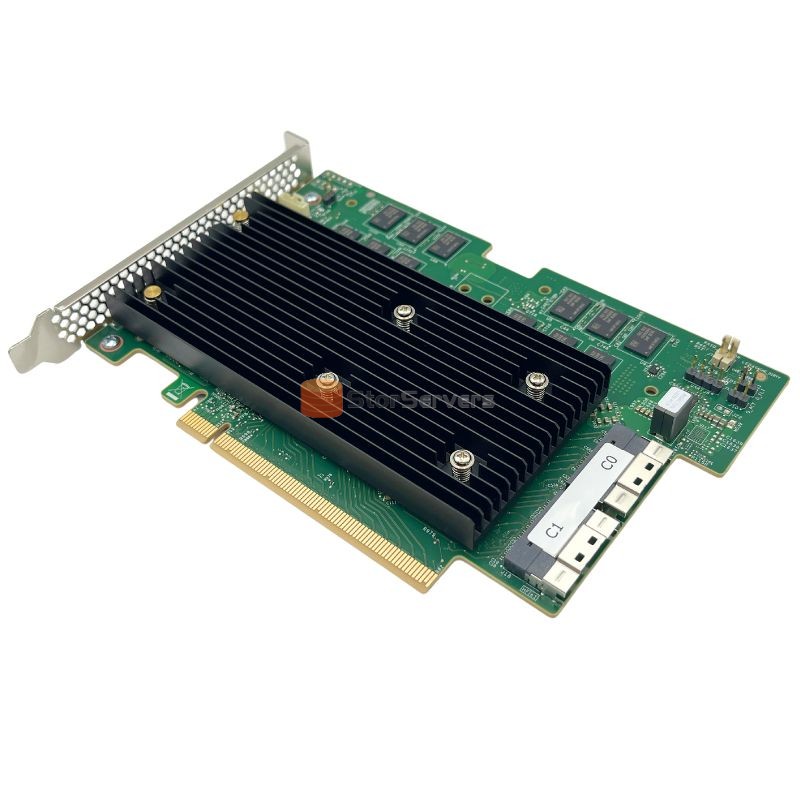

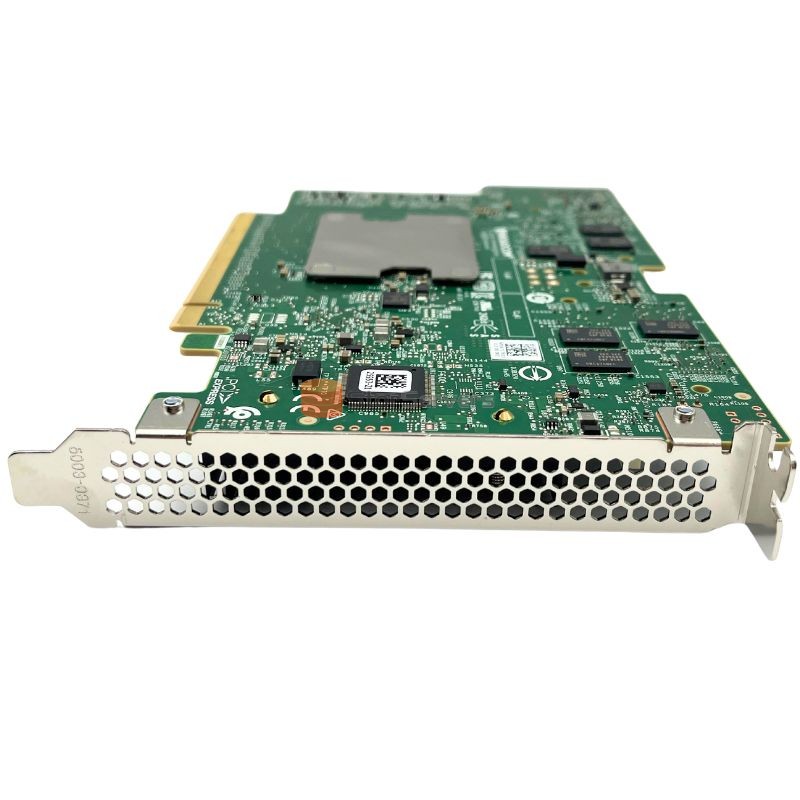

MegaRAID 9670W 16i 05 50113 00 8GB
Applications
The MegaRAID 9600 series represents cutting-edge Tri-Mode x8 and x16 NVMe/SAS/SATA storage adapters in their third generation. These adapters are specifically designed to provide optimal performance for NVMe SSD-based storage systems. The 9600 family offers significant improvements, including double the bandwidth, over four times the IOPs, a 25-fold reduction in write latency, and a remarkable 60-fold increase in performance during rebuilds compared to the previous generation.
Built upon the SAS4116W RAID-on-Chip (RoC), the MegaRAID 9670W-16i takes performance to the next level by delivering more than a fourfold increase in RAID5 Random Write Ops and twice the bandwidth compared to its predecessor. Notably, the 9670W-16i incorporates an advanced thermal solution that achieves these significant performance enhancements without imposing additional airflow requirements on the system, unlike previous generation adapters. Users can seamlessly integrate the 9670W-16i into their current platforms, unlocking groundbreaking SSD performance without the need for extra cooling or airflow accommodations.
Specification
| Model |
9670W-16i |
| Cache Memory |
8GB |
| Cache Protection |
CVPM05 |
| Connectors |
2x8 SFF-8654 |
| Data Transfer Rates |
22.5, 12 and 6Gb/s SAS and 6Gb/s SATA |
| Form Factor |
Plug-in Card |
Devices Supported
|
SAS/SATA: 240, NVMe: 32
|
Generation
|
24G
|
Internal Ports
|
16
|
Operating Humidity
|
5% to 90% Non-condensing
|
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
