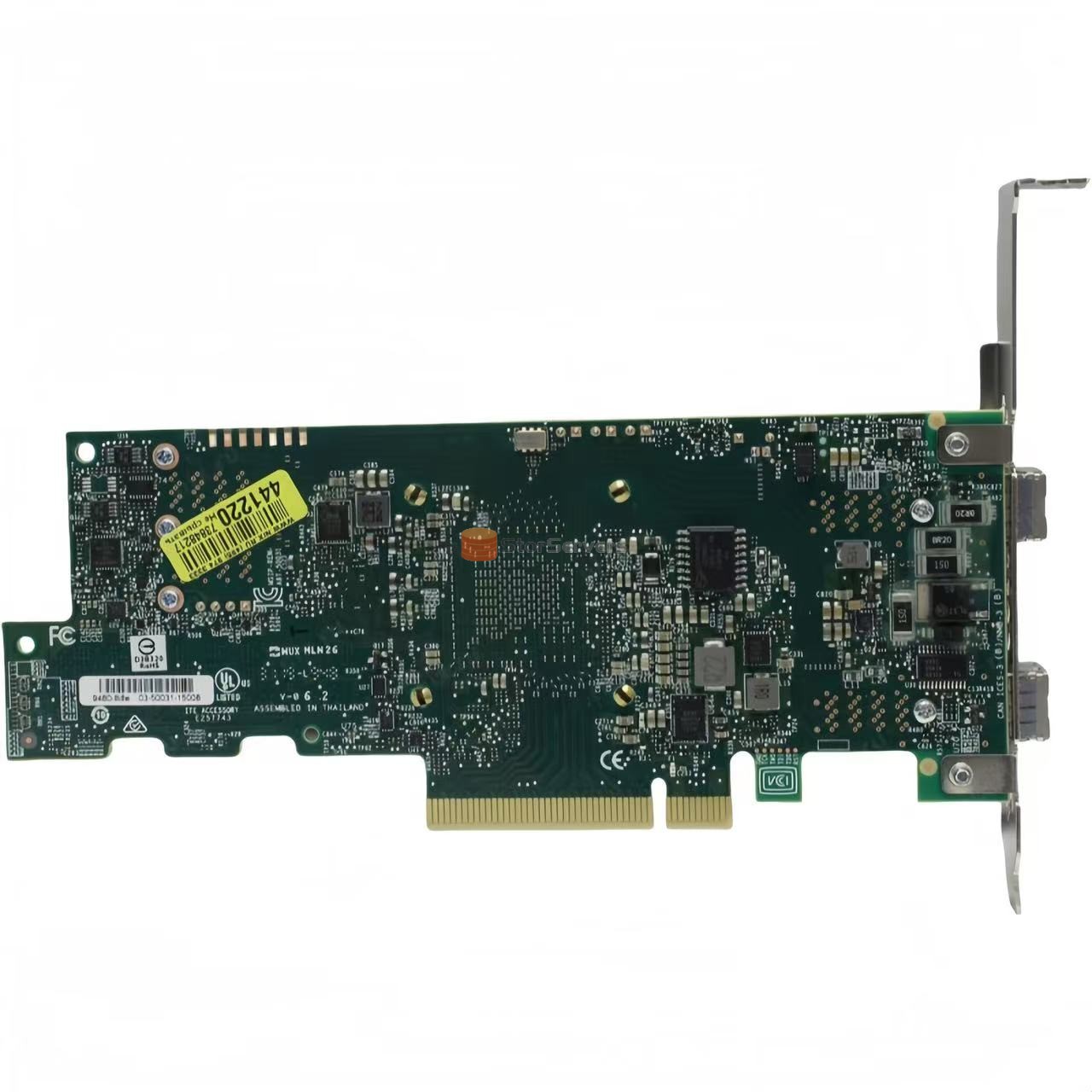

SAS SATA RAID controller 9480-8i8e 05-50031-00
Applications
The 9480-8i8e is a high-performance three mode RAID controller, which is particularly suitable for server environments that need to connect internal and external storage devices at the same time and have requirements for NVMe performance. Its flexible port configuration and comprehensive RAID functionality make it an ideal choice for data centers, virtualization platforms, and high-performance computing environments.
Three mode (TRI-MODE) RAID controller, based on SAS3516 chip, provides 8 internal+8 external SAS/SATA/NVMe ports, PCIe 3.1 x8 interface, 2GB/4GB DDR4 cache, supports RAID 0/1/5/6/10/50/60 and JBOD, and adapts to half height/full height chassis.
Key Features
• Supports data transfer rates of 12, 6, and 3Gb/s SAS, as well as 6 and 3Gb/s SATA
• Up to 8 storage interface PCIe links. Each link supports up to 8.0 GT/s (PCIe Gen3) x4 or x2 * link width per channel
• Compliant with SFF-9402 standard, connector pin allocation
• Compliant with SFF-8485 standard, SGPIO
• RAID levels 0, 1, 5, 6, 10, 50, and 60
Specification
| Model |
9480-8i8e |
| Adapter Type |
SAS SATA RAID |
| Storage Controller |
05-50031-00 |
| Connectors |
Two (x4) SFF-8643, two (x4) SFF-8644 |
| PCIe Host Interface |
PCIe 3.1 x8 |
| RAID Levels |
0, 1, 5, 6, 10, 50, and 60 |
Form Factor
|
Half height/full height chassis
|
Ports
|
16 |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
