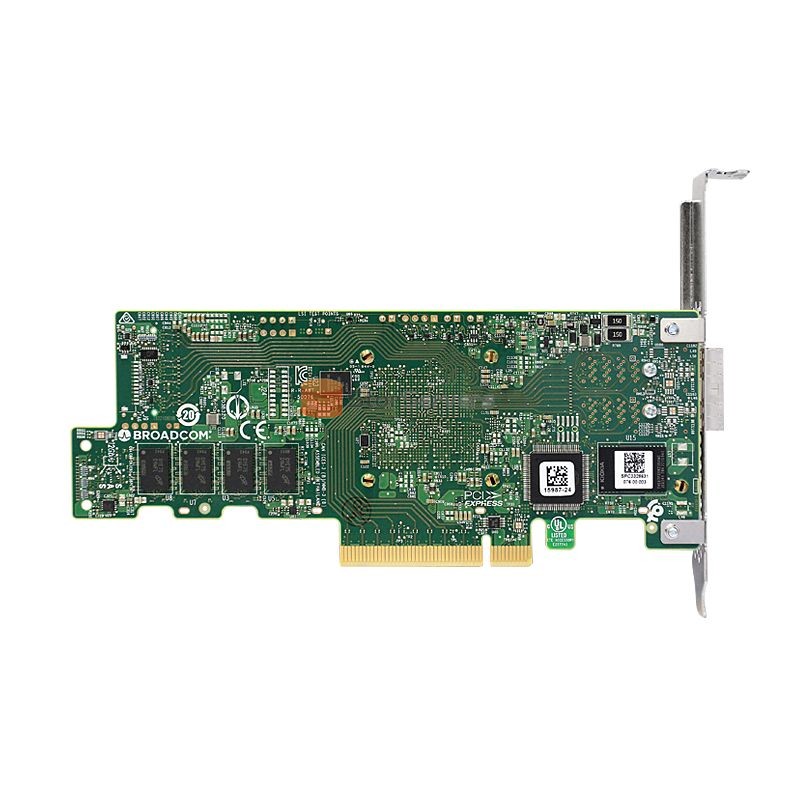

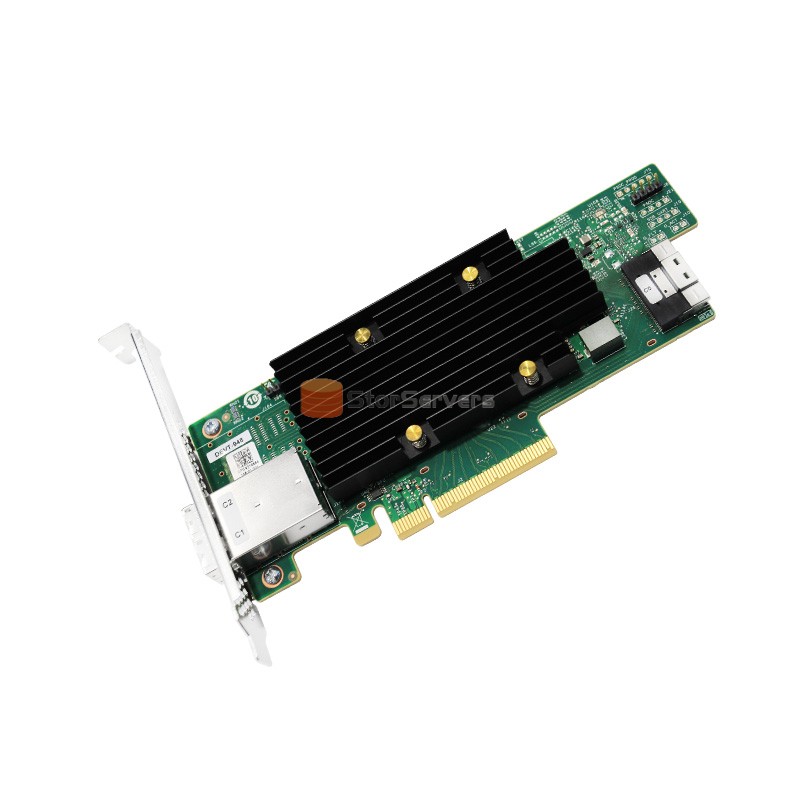

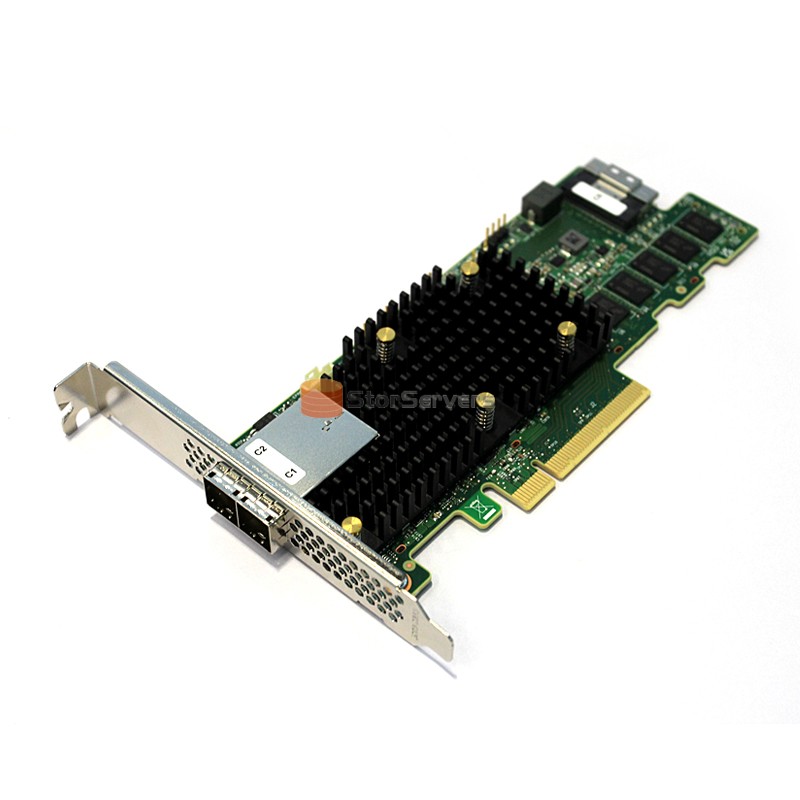

SAS SATA RAID controller 9580-8I8E 05-50076-00
Applications
The MegaRAID 9500 series is the industry’s first PCIe Gen 4.0 RAID adapter family, offering PCIe Gen 4.0 host and storage interfaces. The MegaRAID 9580-8i8e adapter, based on the SAS3916 high-port count PCIe 4.0 x8 RAID-on-Chip (RoC), delivers twice the performance of previous generations. The 9580-8i8e is compatible with existing PCIe SFF-8639 Module (U.2) backplanes, allowing users to boost performance for today’s ever increasing bandwidth environments. Coupled with two industry initiatives expanding the deployment of Tri-Mode SerDes technology, the 9580-8i8e is instrumental in getting the most performance and flexibility out of U.3 backplanes.
Key Features
• Each controller can connect up to 240 SAS/SATA devices or 32 NVMe devices
• 2 x4 SFF-8644 external connector，1 x8 SFF-8654 internal connector
• RAID 0, 00, 1, 5, 6, 10, 50, and 60
• LSISAS3916 12Gb/s SAS three mode RAID on chip (ROC)
• 8GB DDR4 cache
Specification
| Model |
9580-8I8E |
| Adapter Type |
SATA+SAS RAID |
| Storage Controller |
05-50076-00 |
| Connectors |
Six Mini SAS SFF8087 internal connectors，1 Mini SAS SFF8088 external connector |
| PCIe Host Interface |
PCIe 4.0 x8 |
| RAID Levels |
0、00、1、10、5、6、60 |
Form Factor
|
Full height half length 6.6 "× 2.712"
|
Ports
|
16 |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
About US
About us
STOR TECHNOLOGY LIMITED founded in 2007, focusing on providing hardware solutions for cloud computing ,cloud storage,data centre, security monitor, customized server and other fields. Our main products are Raid Card, HBA Card,Fiber Card,Network Card,Hard Drives,CPU. We can provide long-term good after sales service for customers. ODM orders Welcome!
Our Advantages
-
-
High Quality
Good quality control System,competitive cost control system.
-
Low MOQ
Large production capacity with lowest MOQ.
-
-
-
Shipping & Packing

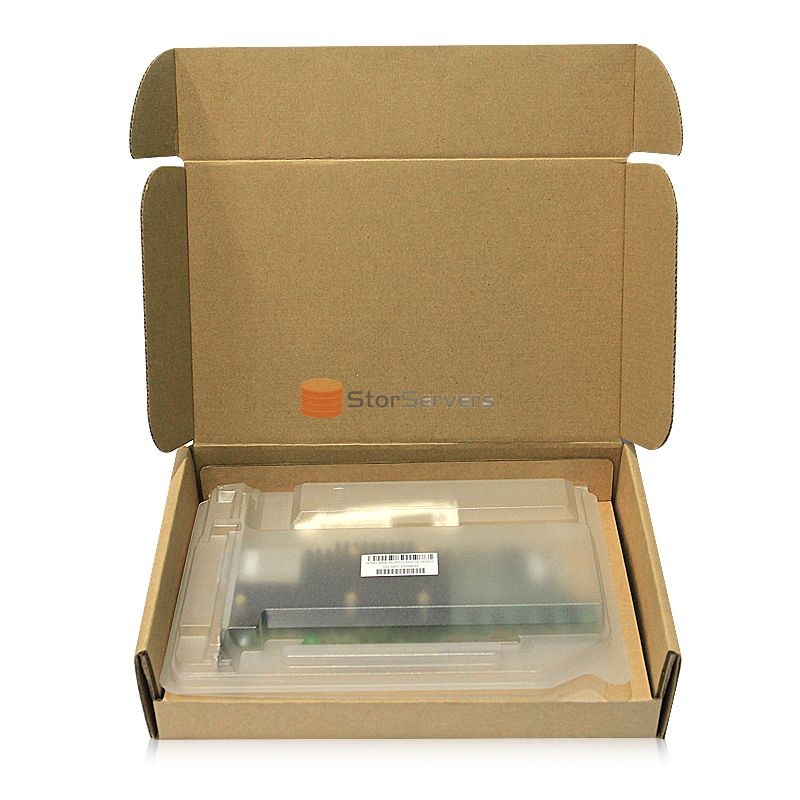

- Packing: standard export packing or customized packing
