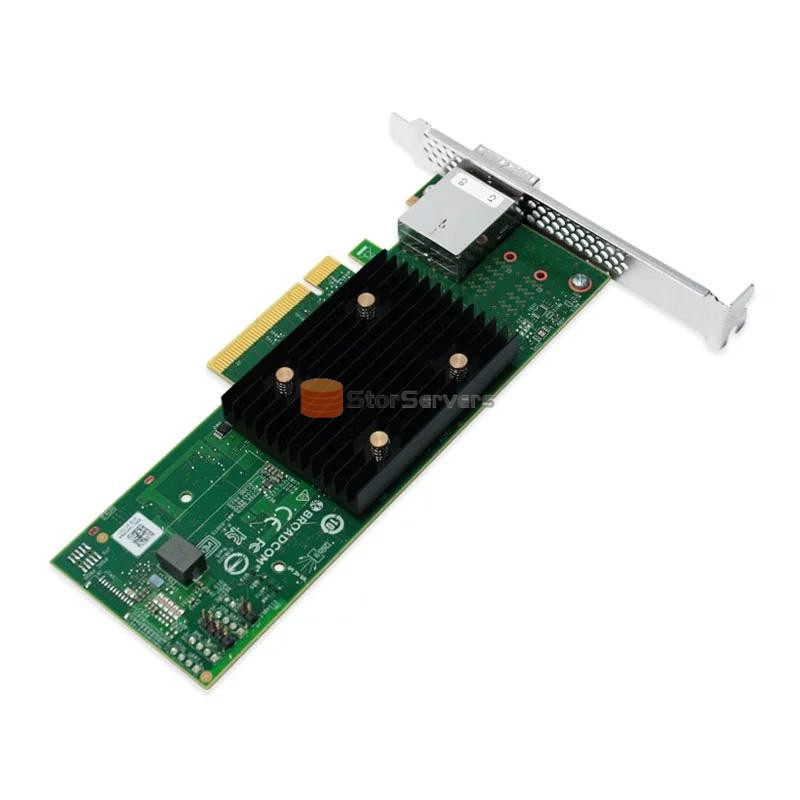

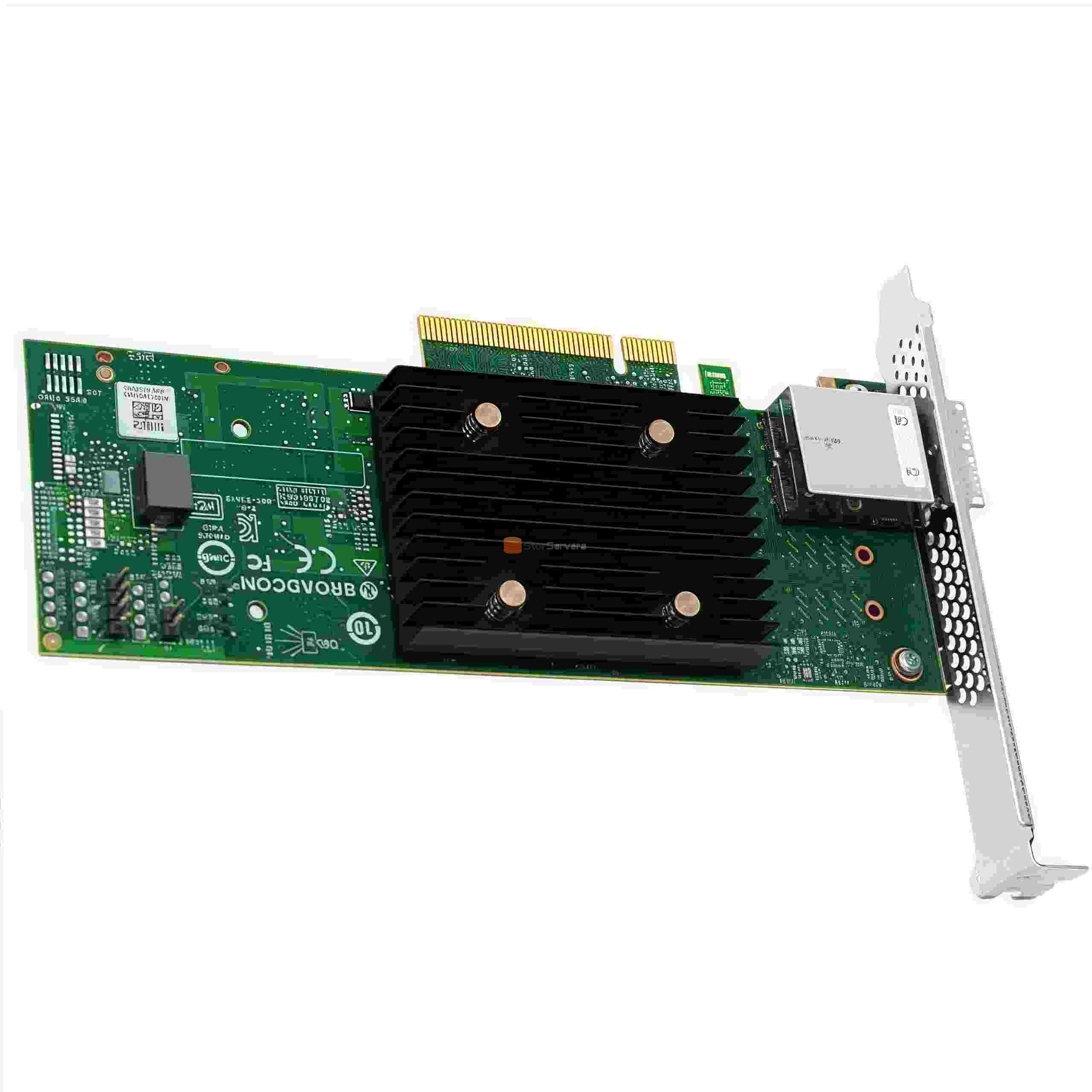

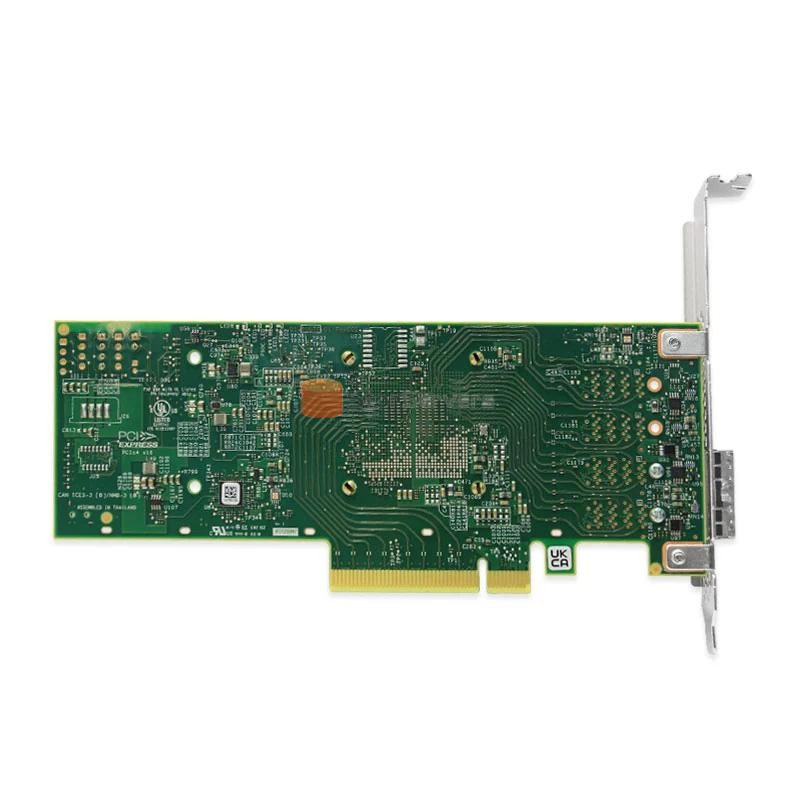

SAS SATA RAID controller 9500-8e 05-50075-01
Applications
9500 Series PCIe Gen 4.0 Tri-Mode Storage HBAs 12Gb/s SAS/SATA/PCIe (NVMe) Tri-Mode HBAs.Overview,The Broadcom ® HBA 9500 series of 12Gb/s SAS/SATA/PCIe (NVMe) Gen4 Tri-Mode storage adapters provides system and server OEMs and data centers with unprecedented flexibility and high performance at the lowest cost. Utilizing Broadcom’s Tri-Mode SerDes technology, the HBAs enable the operation of NVMe, SAS, or SATA devices in a single drive bay, allowing for endless design flexibility.Based on the Broadcom SAS3816 and SAS3808 eight-lane host PCIe to SAS/SATA/PCIe IOC controllers, the 9500 series adapters are the first HBAs to offer both PCIe Gen 4.0 host and PCIe Gen 4.0 storage interfaces. PCIe Gen 4.0 enables these adapters for high bandwidth by delivering twice the bandwidth and 75% more IOPs.
Key Features
• Can connect up to 1024 SAS/SATA devices or 32 NVMe devices
• 2 × SFF-8644 (Mini-SAS HD)
• RAID levels 0, 1, 5, 6, 10, 50, 60
• SAS3808 12Gb/s Tri Mode ROC chip
• 2 GB DDR4
Specification
| Model |
9500-8e |
| Adapter Type |
SATA+SAS HBA |
| Storage Controller |
SAS3808 |
| Connectors |
2 × SFF-8644 (Mini-SAS HD) |
| PCIe Host Interface |
PCIe 4.0 x8 |
| RAID Levels |
0, 1, 5, 6, 10, 50, 60 |
Form Factor
|
167.65 (+/-0.13) millimeters x 68.77 (+/-0.13) millimeters
|
Ports
|
8 |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
About US
About us
STOR TECHNOLOGY LIMITED founded in 2007, focusing on providing hardware solutions for cloud computing ,cloud storage,data centre, security monitor, customized server and other fields. Our main products are Raid Card, HBA Card,Fiber Card,Network Card,Hard Drives,CPU. We can provide long-term good after sales service for customers. ODM orders Welcome!
Our Advantages
-
-
High Quality
Good quality control System,competitive cost control system.
-
Low MOQ
Large production capacity with lowest MOQ.
-
-
-
Shipping & Packing

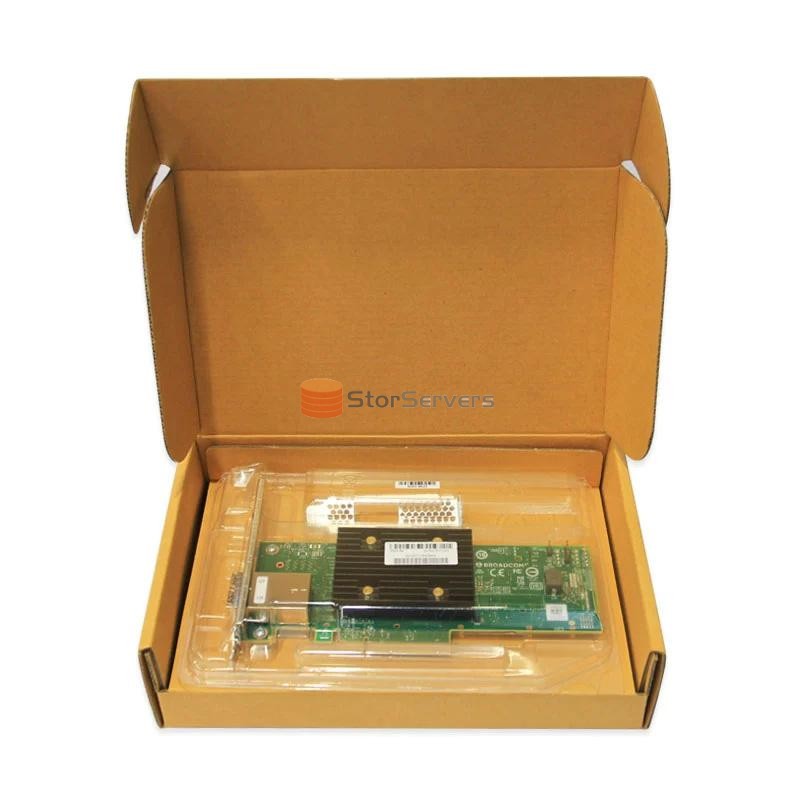

- Packing: standard export packing or customized packing
