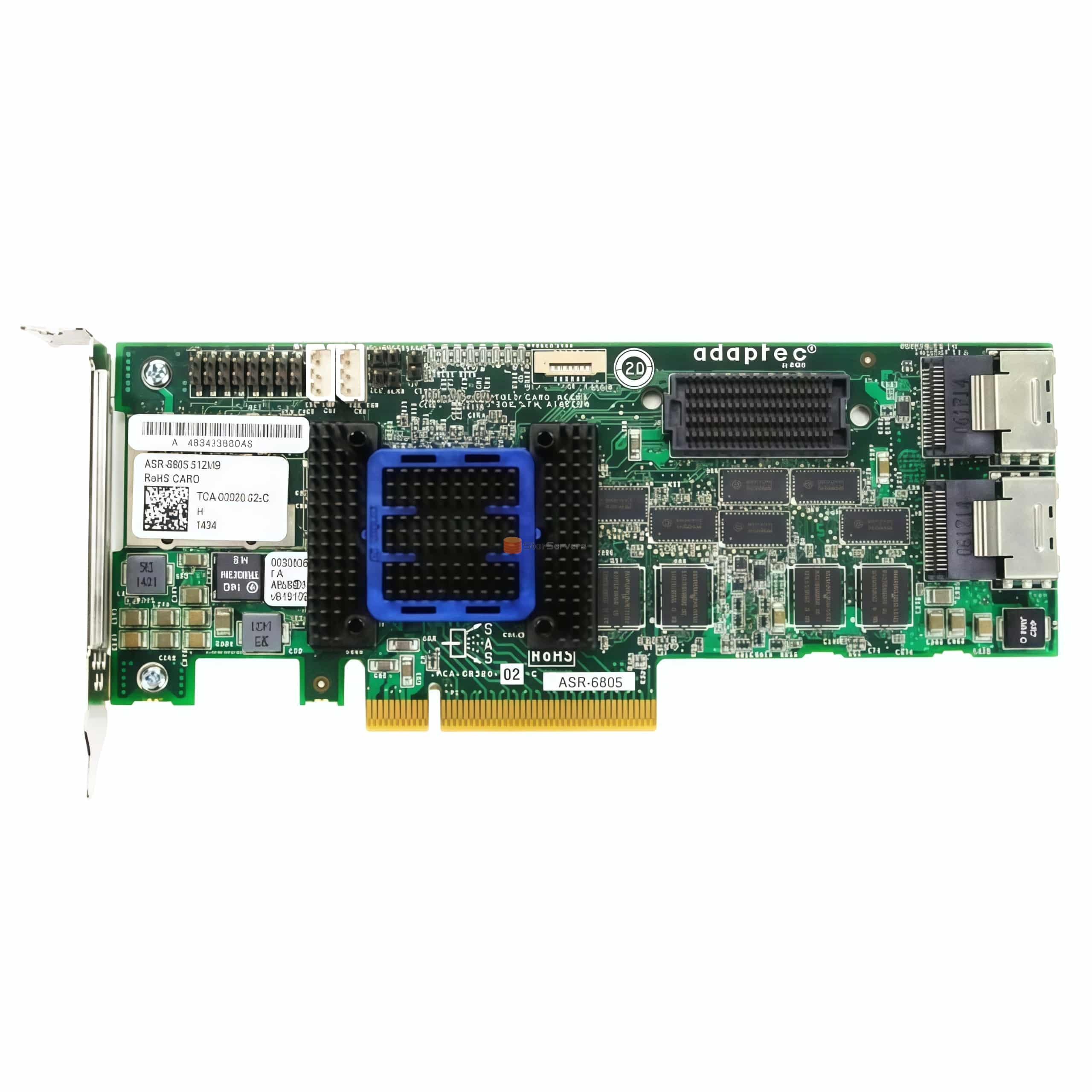

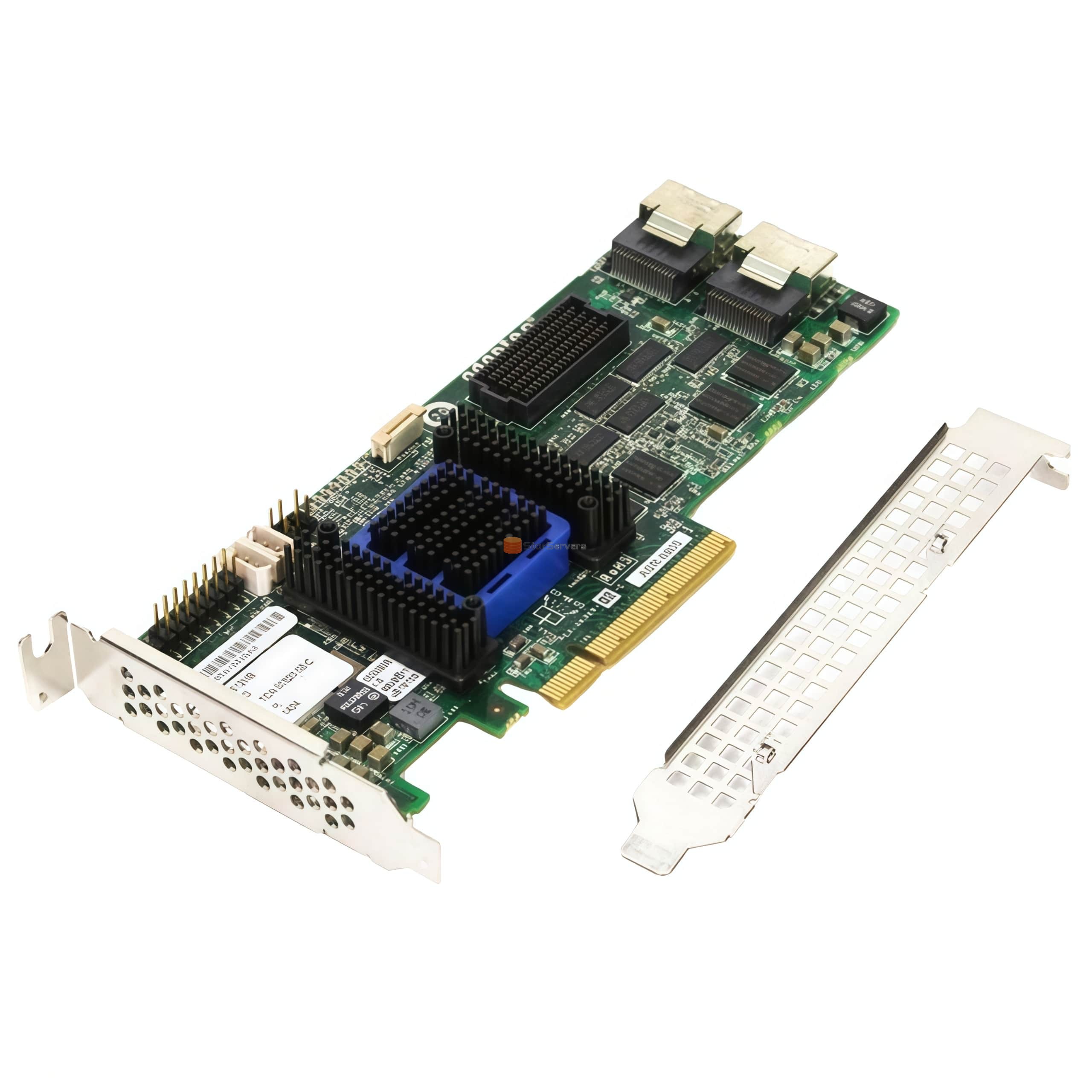

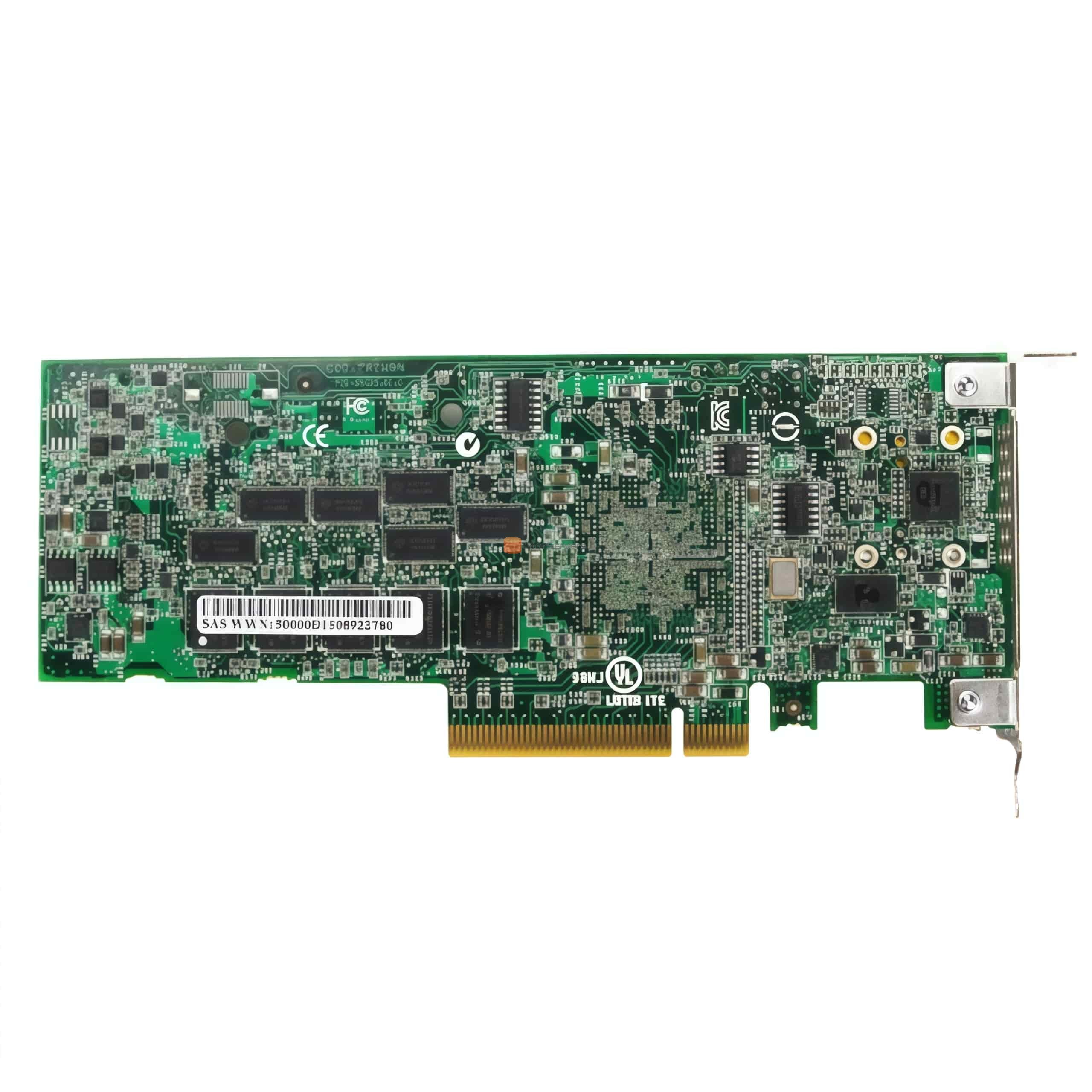

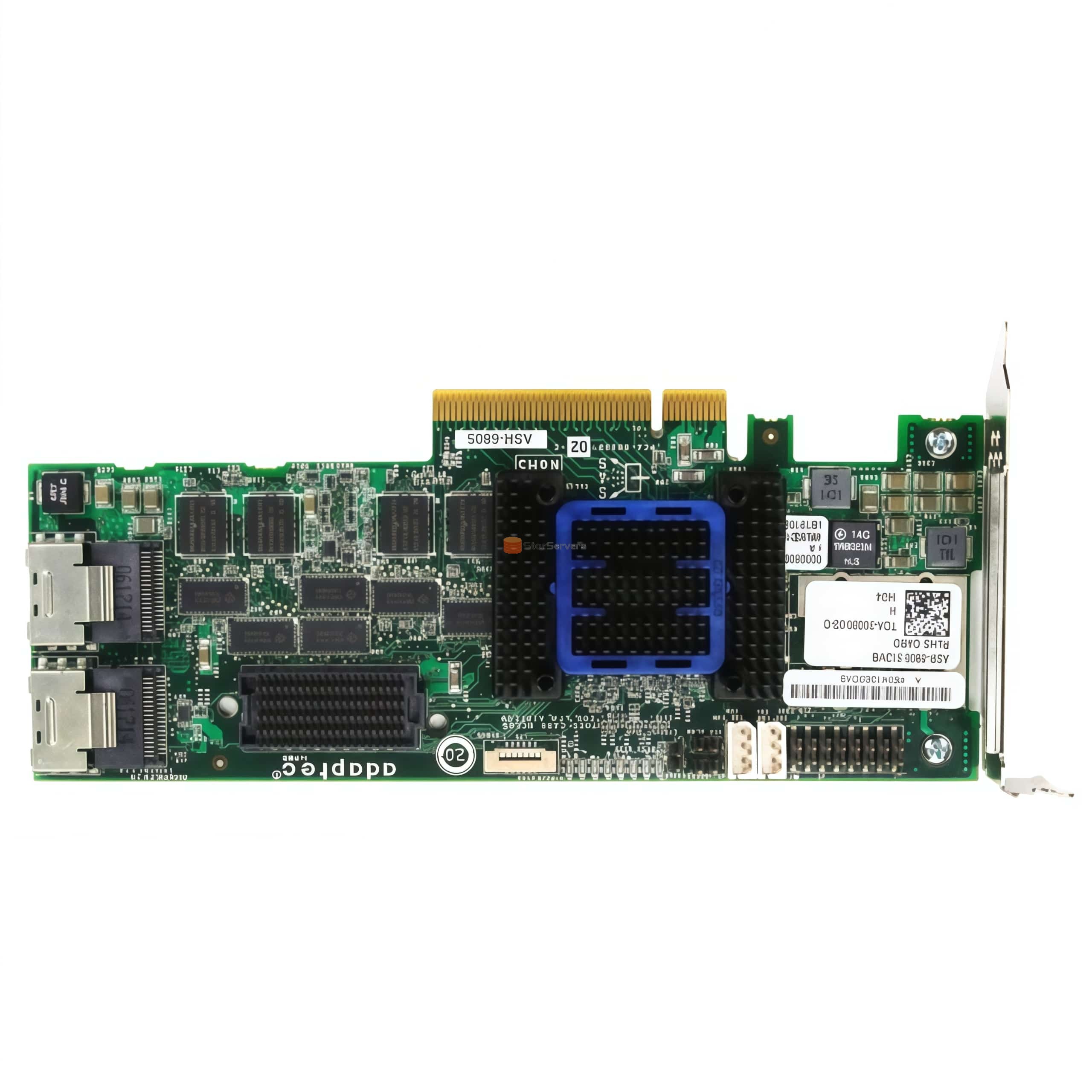

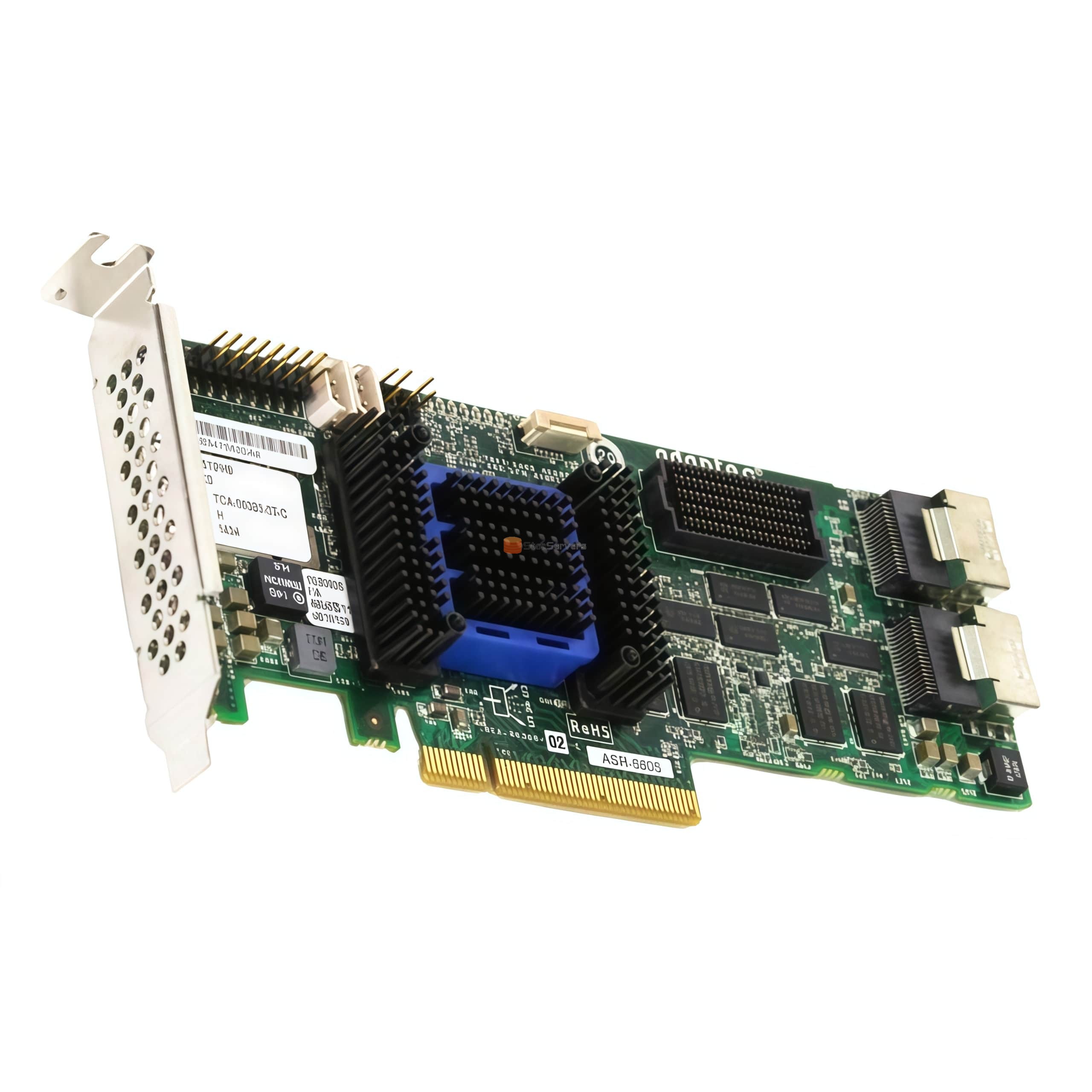

SAS SATA RAID controller ASR-6805 2270100-R PM8013
Applications
Adaptec ASR-6805 2270100-R 6Gb/s 8-port internal PCIe Gen 2 x8 SAS SATA RAID controller, 8 internal ports, slim, SAS 2.0 and second-generation PCI Express (PCIe) unified serial RAID controller, with zero maintenance cache protection and intelligent power management capabilities, providing users with excellent performance, advanced data protection, maximum scalability, and the lowest total cost of ownership for enterprise level, high-density server applications.
Key Features
• 8 internal 6Gb/s SAS+SATA ports
• 2 × SFF-8087（Mini-SAS HD）
• RAID levels 0、1、1E、5、5EE、6、10、50、60 and JBOD
• PM8013 6Gb/s Tri Mode ROC chip
• 512MB DDR2 667MHz Cache
Specification
| Model |
ASR-6805 |
| Adapter Type |
SATA+SAS RAID |
| Storage Controller |
PM8013 |
| Connectors |
2 × SFF-8087（Mini-SAS HD） |
| PCIe Host Interface |
PCIe 2.0 x8 |
| RAID Levels |
0、1、1E、5、5EE、6、10、50、60 and JBOD |
Form Factor
|
6.6 inches × 2.5 inches
|
Ports
|
8 |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
