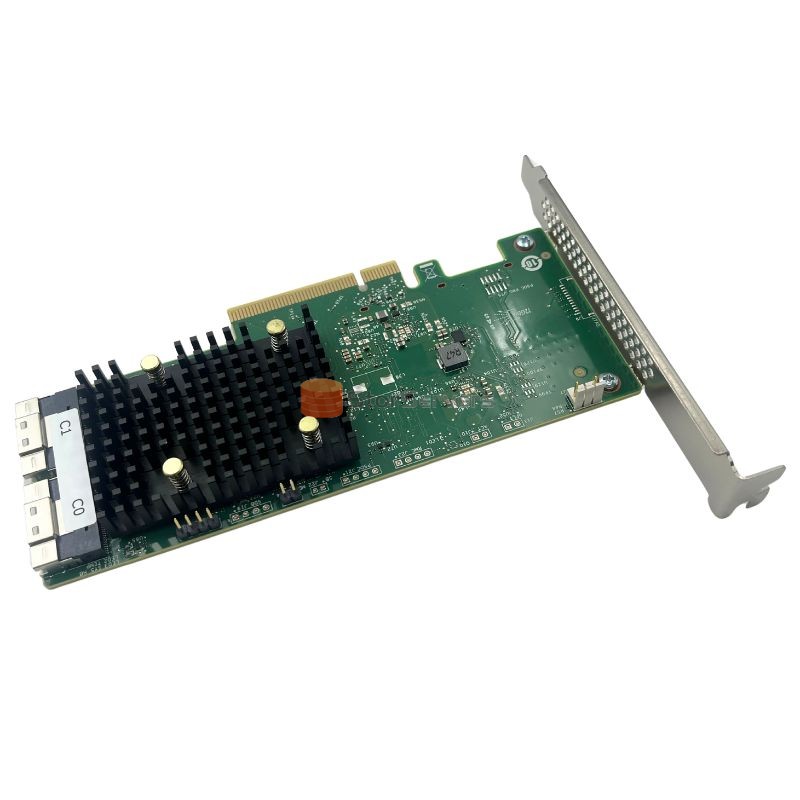

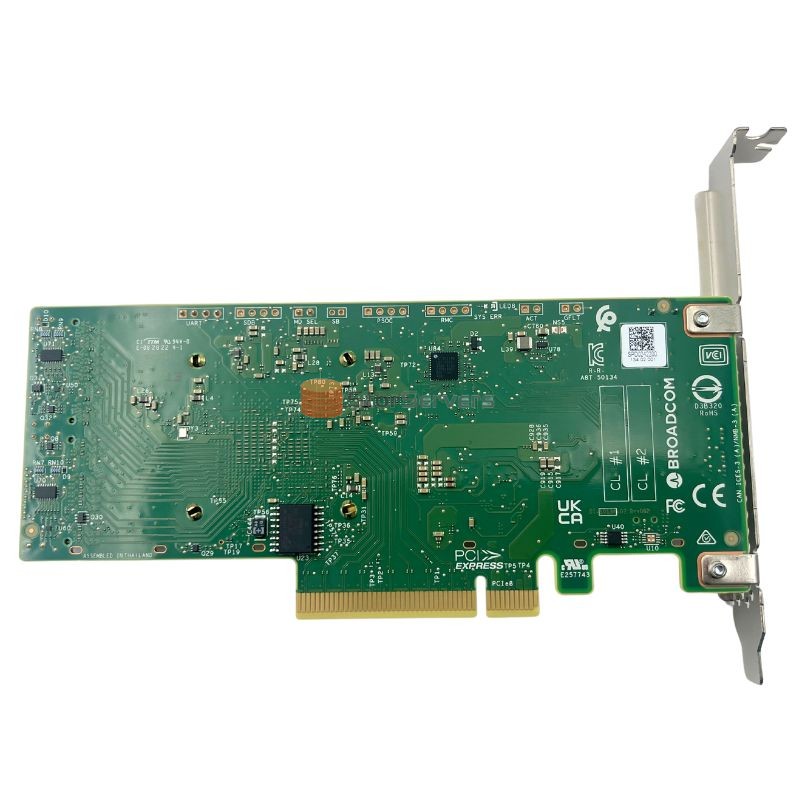

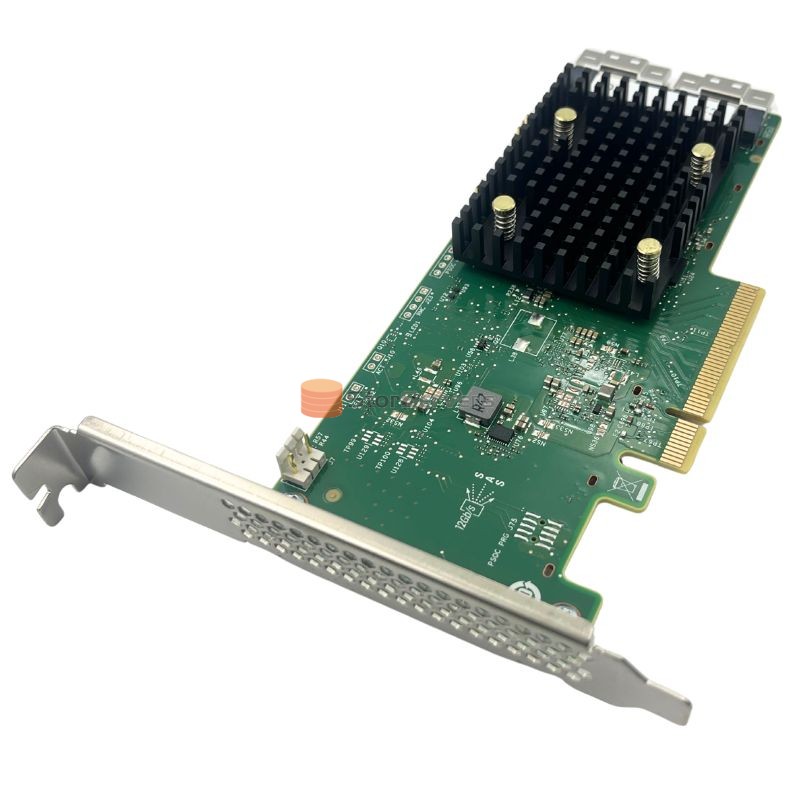

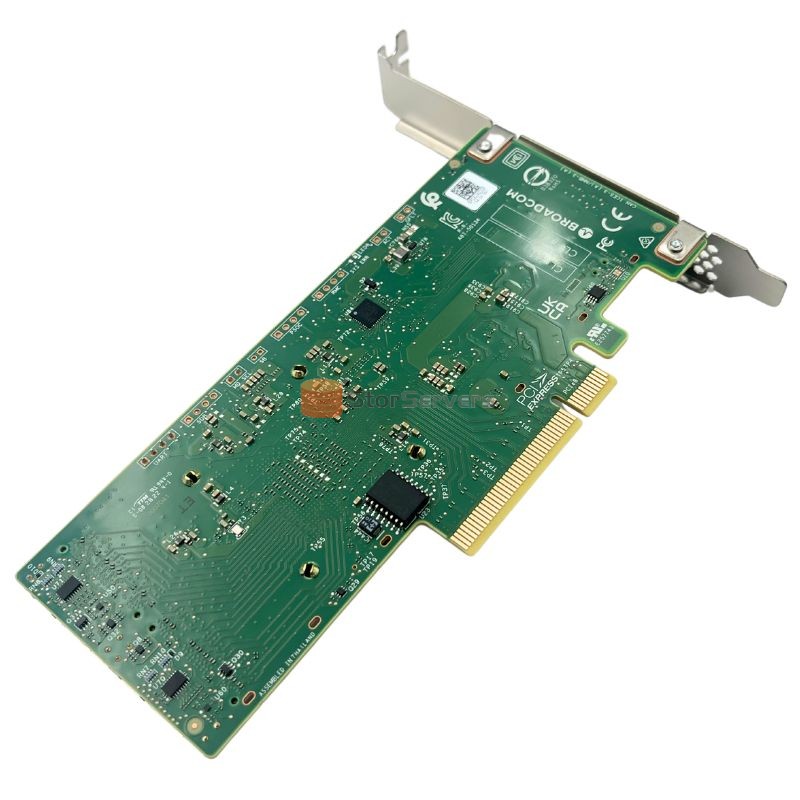

SAS SATA RAID controller 9540-16i 05-50077-00
Applications
The 9560-16i is compatible with existing PCIe SFF-8639 Module (U.2) backplanes, allowing users to boost performance for today’s ever increasing bandwidth environments. Coupled with two industry initiatives expanding the deployment of Tri-Mode SerDes technology, which enables the operation of NVMe, SAS or SATA devices in a single drive bay, the 9560-16i is instrumental in getting the most performance and flexibility out of U.3 backplanes
Key Features
• Connect up to 240 SAS/SATA devices or 32 NVMe devices per controller
• Fits into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
• Form-factor friendly cable exit
• Support critical, high-bandwidth applications with PCIe 4.0 connectivity
• Balance protection and performance for critical applications with RAID 0, 00, 1, 5, 6, 10, 50 and 60
Specification
| Model |
9540-16i |
| Adapter Type |
SAS SATA RAID |
| Storage Controller |
05-50077-00 |
| Connectors |
2 x8 SFF-8654（SlimSAS） |
| PCIe Host Interface |
PCIe 4.0 x8 |
| RAID Levels |
0, 00, 1, 10, 5, 6, 60 |
Form Factor
|
standard server RAID card sizes
|
Ports
|
16
|
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
